Waren-Nr.: 2904547

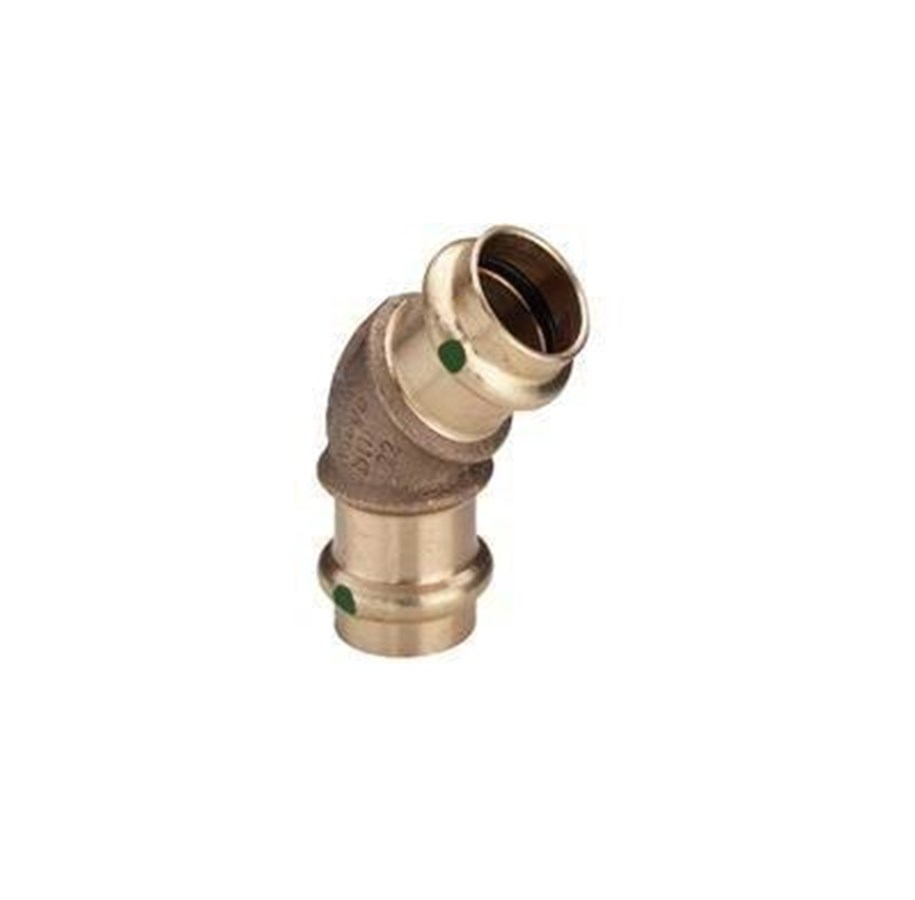

Viega Sanpress bend 45° 35 gunmetal/glossy 116156
Viega Sanpress bend 45° 35 Red brass/blank, 116156
37,66 €
31,38 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 3-5 Werktage Lieferzeit
. 85°C•Driftstryk max. 1.6 MPaViega Sanpress bend 45° 35 Red Brass/Polished, 116156 Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no.1.4401 and 1.4521 according to DIN EN10088, DIN EN10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988. For stable installation of various plumbing installations in Viega's complete system.Press fittings All sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled with liquid. The SC-Contur is certified and meets the requirements of DVGW work sheet W534 point12:14 guaranteed leak-proof when not pressed.During pressure testing with water Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa,, during dry pressure testing with compressed air or inert gases from22 hPa–0 .3MPa.Marking •Green dot on press connection Gaskets EPDM black (ethylene-propylene-diene rubber), up to110°C not resistant to hydrocarbon solvents,chlorinated hydrocarbons,turpentine,gasoline Pipes Stainless steel laser welded and corrosion-resistant stainless steel •Material No .: 14401 (AISI316L) (X5CrNiMo17-12-2),with2 .3% molybdenum for better durability,yellow plugs•Material No.:14521(AISI444)(X2CrMoTi18-2),with PRE value24 .1 ,green plugs Dimensions/material Standard sizes:d12 ,15 ,18 ,22 ,28 ,35 ,42 ,54 of red brass XL sizes:d76 .1,88 .9,108 .0 of red brass Press fitting with threaded connection of red brass Applications Drinking water Rainwater Compressed air systems Agriculture Industry Special applications Shipbuilding In case of use for other than the described applications, contact Viega Service Center to coordinate materials. Operating conditions Drinking water installations •Drinking water without restrictions according to TrinkwV•Operating temperature max.85°C•Operating pressure max.1.6 MPa
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
