Pumpen - Grundfos up15-14b pm - 97916771
Waren-Nr.: 2898965
97916771

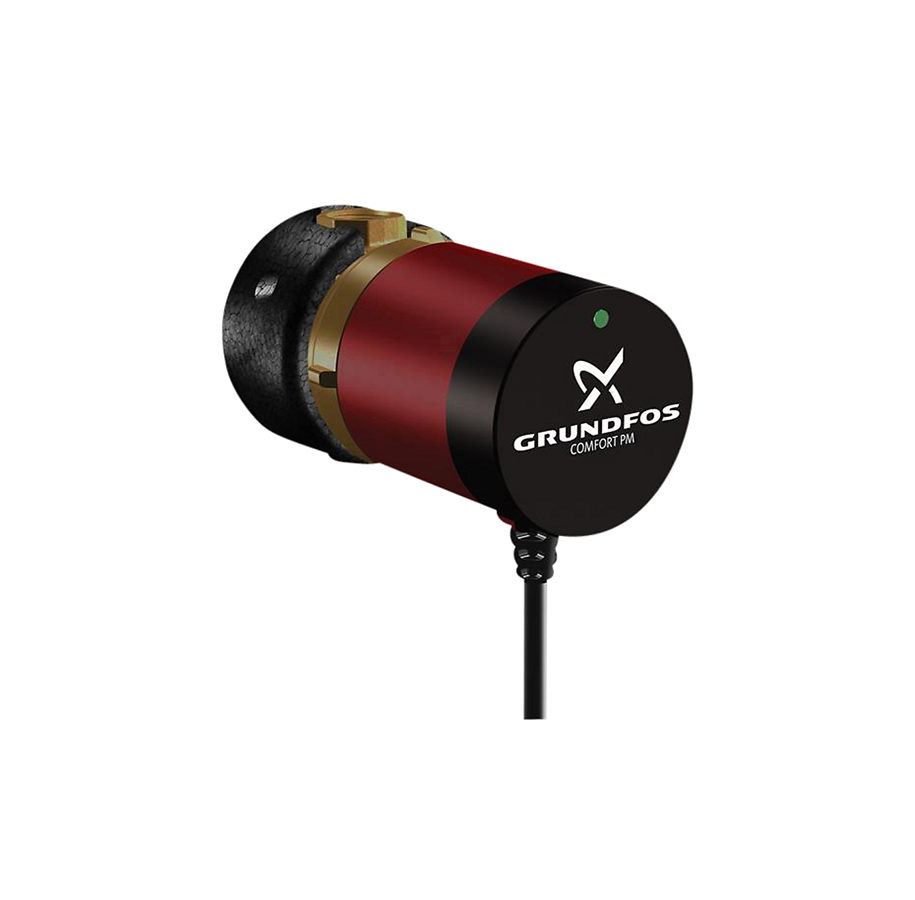

Grundfos up15-14b pm

UP 15-14 B PMThe high efficiency Coomfort PM range is a product for domestic hotwater recirculation in 1 and 2 family houses.The motor is a single-phase, 2-pole, hysteresis, permanent-magnet motor in conformity with the EMCdirective.Characteristics and benefits:* Unique AUTOADAPT saves up to 50% heatenergy and 87% motor energy compared with a standard pump in continuous operation* Flushing function* Automatic legionella operation (if supported from the system)* Automatic weekend and vacation function* Temperature control optional* Continuous operation optional* Fast and simple electrical installation due to the million times trusted ALPHA plug* Easy to clean and lime insensitive spheric rotor* Application area up 14°dH water hardness* Wearless operation due to liquid lubricated bearing* No leakage risk due to a static seal* Easy maintenance and cleaning by easy-to-separated motor head that fits on all standard circulation pump housings* Korrosion resistant pump housing in brass* Due to impedance protected motor no motor protection necessary* No additional installation costs due to integrated non return and stop valve in the pump housingLiquid:Liquid temperature range:2 .. 95 °CTechnical:TF class:95Approvals on nameplate:VDE,GS,CEMaterials:Pump housing:Brass MS 68Impeller:Stainless steel, EPDM, PPO, PTFE, GraphitInstallation:Maximum operating pressure:10 barPipe connection:Rp 1/2Port-to-port length:80 mmElectrical data:Max. power input:8 WRated voltage:1 x 230 VCurrent in speed 3:0.07 ACapacitor size - run:0.6 FEnclosure class (IEC 34-5):IP44Insulation class (IEC 85):FOthers:Net weight:1 kgGross weight:1.12 kgShipping volume:0.003 m3

203,71 € 169,76 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 3-5 Werktage Lieferzeit

COMFORT 15-14 B PMThe highly efficient Grundfos Comfort PM program is designed for recirculation of domestic water in single and two-family homes and has a lead-free drinking water suitable pump housing. This program is powered by a high-efficiency, 1-phase, 12-pole permanent magnet motor.Features and benefits:- Easy and fast electrical installation thanks to the extremely reliable ALPHA plug- Dry run protection- Easy to clean and scale-resistant ball rotor- Wear-free operation thanks to liquid-lubricated bearing - No risk of leakage due to static seal - Maintenance-friendly as the pump housing is easy to disassemble - fits almost all pump housings on the market -Corrosion-resistant lead-free brass pump housing -No need for additional motor protection thanks to integrated motor electronics Media:-Pump medium: Water -Liquid temperature range: 2 ..95 °C -Liquid temperature during operation: 60 °C -Mass density: 983.2 kg/m³ Technical:-TF class: 95 -Type plate approvals: CE,VDE Materials:-Pump housing : Brass MS68 -Impeller : Stainless steel, EPDM, PPO, PTFE, Graphite Installation:-Maximum operating pressure.:10 bar -Pipe connection.:1/2" -Built-in length.:80 mm Electrical data :-Power consumption at speed3 :7 W -Mains frequency :50 Hz -Rated voltage :1 x230 V -Speed3 current drawn (I3) :0.07 A -Capacitor size - running (P2) 0.6 µF -Protection class (IEC34 -5):IP44

Hersteller
Waren-Nr.
2898965
Modell
97916771
EAN
5710626363766
