Waren-Nr.: 2898900

Grundfos unilift kp350-a-1 1x220-240v 50hz 10m sch

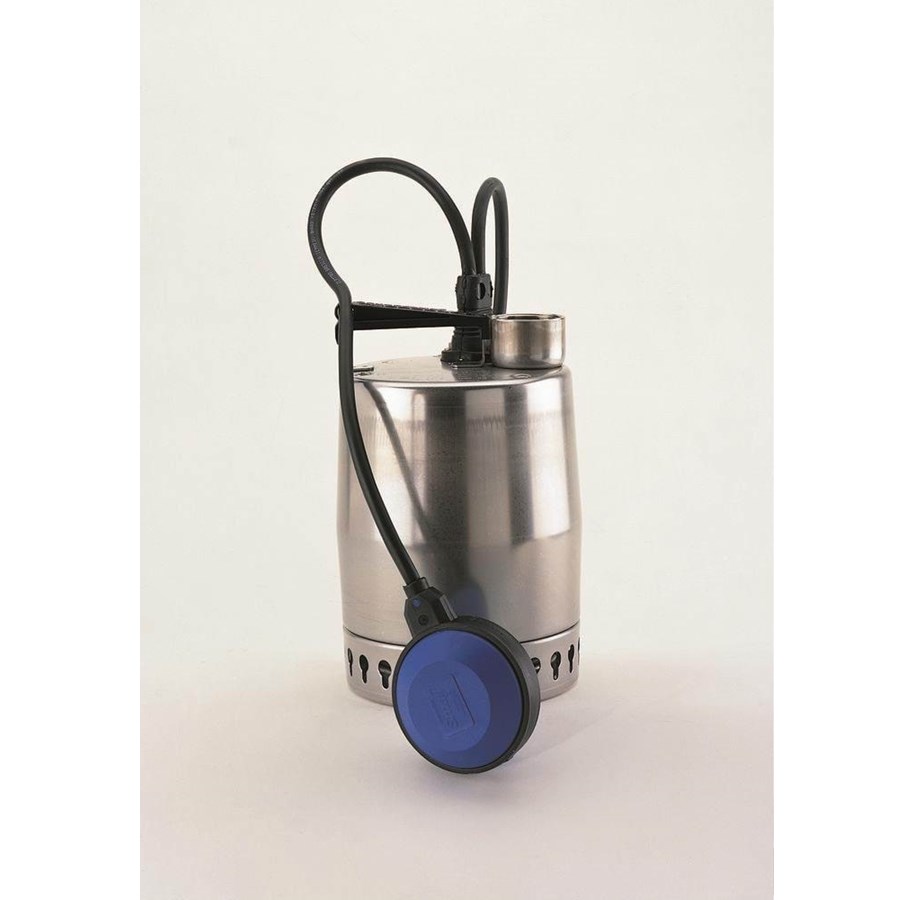

Unilift KP 350 A 1Submersible drainage pumpVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase canned motor ininsulation class F with thermal overloadprotection. The pump is fitted with suction strainer and acarrying handle and is supplied with a 10 mmains cable and float switch for automatic startand stop.The impeller is a semi-open impeller for 10 mmfree passage suitable for pumping groundwater,surface water, rain water and similar liquids.The pump has a double shaft seal consisting oftwo lip seals with grease in-between.The pump has an outer casing ensuring continuouscooling of the motor by the pumped liquid.The rotor shaft operates in two maintenance-freecarbon bearings cooled by the pumped liquid.The motor is filled with a non-toxic motor liquid. Liquid:Liquid temperature range:0 .. 50 °CTechnical:Maximum particle size:10 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4031Impeller:AISI 304Installation:Pump outlet:Rp 1 1/4Maximum installation depth:10 mElectrical data:Power input - P1:700 WRated voltage:1 x 220-240 VRated current:3.2 ACapacitor size - run:8 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight:8 kgGross weight:8.3 kgShipping volume:0.013 m3

Lesen Sie mehr
747,28 € 622,73 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 3-5 Werktage Lieferzeit

Grundfos UNILIFT basement pump KP 350A-1 10m cable SCH with level switch Product description: Unilift KP 350 A 1 Basement and drainage pump Vertical single-stage submersible pump made of stainless steel with vertical outlet connection and built-in single-phase split motor in insulation class F with thermal protection. The pump has an inlet strainer and lifting handle and comes with a 10 m power cable and float switch for automatic start/stop. The impeller is a semi-open impeller with free passage of 10 mm suitable for pumping groundwater, surface water, rainwater, and similar media. The pump has double shaft sealing consisting of two lip seals with grease in between. The outer casing of the pump ensures constant cooling of the motor by means of the pumped medium. The rotor shaft runs on two maintenance-free ball bearings cooled by the pumped medium. The motor is filled with a non-toxic liquid.Liquid:Liquid temperature range:0 ..50 °CTechnical:Maximum particle size:10 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr.1.4301Pump housing:AISI304Impeller:Stainless steelImpeller:DIN W.-Nr.1,4031Impeller:AISI304Installation:Pump outlet:Rp11/4Maximum installation depth:10 mElectrical data:Power input - P1700 WRated voltage :1 x220-240 VRated current :3 .2 ACapacitor size - run :8 F /400 VEnclosure class (IEC34-5):68Insulation class (IEC85):FLengthofcable :10 mTypeofcableplug:SCHUKOOthers :Net weight :8 kgGross weight :8 .3 kgShipping volume :0 .013 m3

Hersteller
Waren-Nr.
2898900
Modell
013N1800
EAN
5700393449381
