Grundfos Unilift KP 150 A 1 basement pump

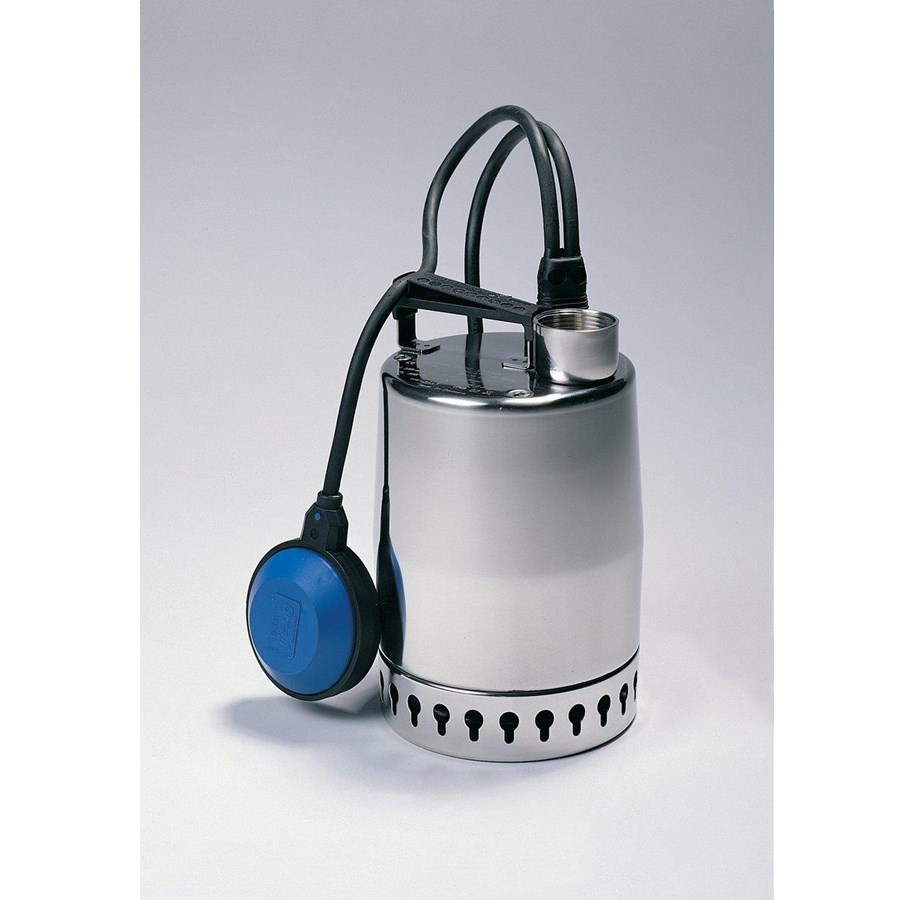

The Grundfos Unilift KP 150 A 1 basement and bilge pump is a vertical single-stage submersible pump made of stainless steel with a vertical outlet. The pump has an inlet strainer and lifting bracket and is supplied with a 10 m mains cable and float switch for automatic start/stop. The impeller is a semi-open impeller with a free passage of 10 mm suitable for pumping groundwater, surface water, rainwater and similar media. The pump has a double shaft seal consisting of two lip seals with grease in between. The outer casing of the pump ensures constant cooling of the motor by means of the pumped medium. The rotor shaft runs in two maintenance-free carbon bearings, which are cooled by the pumped medium. The motor is filled with a non-toxic liquid.
The Grundfos Unilift KP 150 A 1 basement and bilge pump is a vertical single-stage submersible pump made of stainless steel with a vertical outlet. The pump has an inlet strainer and lifting bracket and is supplied with a 10 m mains cable and float switch for automatic start/stop. The impeller is a semi-open impeller with a free passage of 10 mm suitable for pumping groundwater, surface water, rainwater and similar media. The pump has a double shaft seal consisting of two lip seals with grease in between. The outer casing of the pump ensures constant cooling of the motor by means of the pumped medium. The rotor shaft runs in two maintenance-free carbon bearings, which are cooled by the pumped medium. The motor is filled with a non-toxic liquid. Medium:
Pumped medium: any medium
Liquid temperature range: 0 .. 50 °C
Density: 998.2 kg/m³
Technical:
Max. particle size: 10 mm
Materials:
Pump housing: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impulse: Stainless steel
DIN W.-Nr. 1.4031
AISI 304
Installation:
Pump outlet: Rp 1 1/4
Max. installation depth: 7 m
Electrical data:
Power consumption - P1: 300 W
Mains frequency: 50 Hz
Rated voltage: 1 x 220-230 V
Rated current: 1.3 A
Capacitor size - in operation: 8 µF/400 V
Protection class (IEC 34-5): IP68
Insulation class (IEC 85): F
Cable length: 10 m
Type of cable plug: SCHUKO
