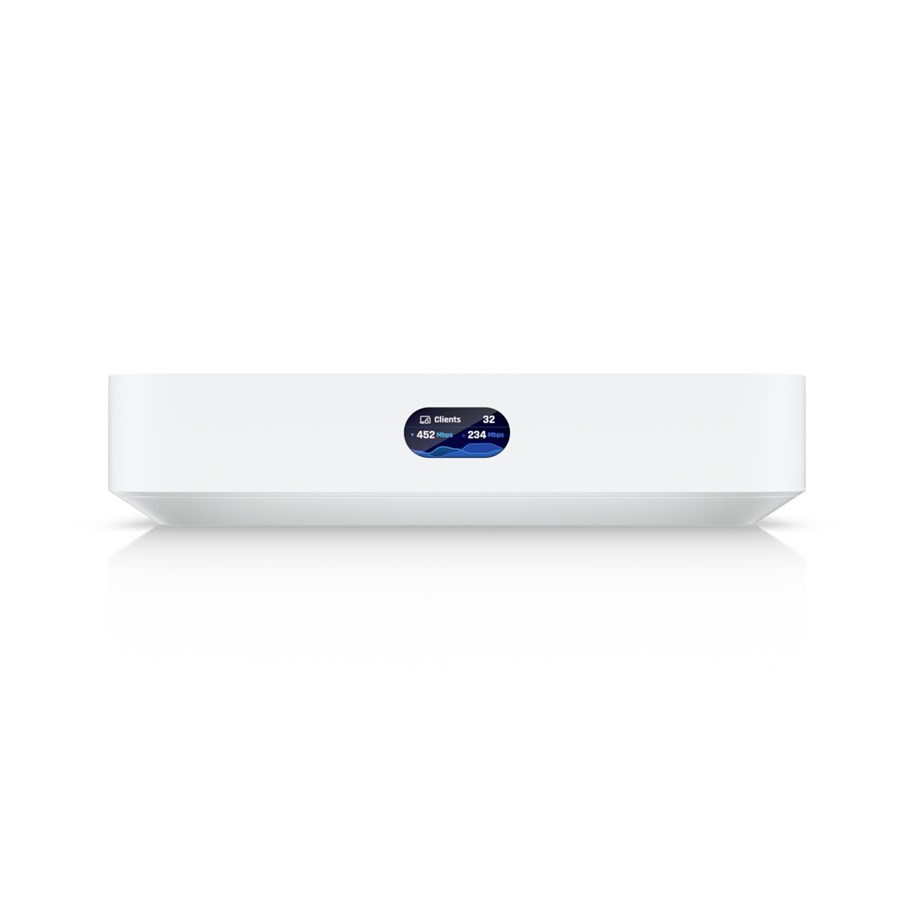

Ubiquiti UniFi Cloud Gateway Max (512GB) - Router
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
- Includes full UniFi application suite for device management
- Manages 30+ UniFi devices and 300+ clients
- 1.5 Gbps routing with IDS/IPS
- Multi-WAN load balancing
- 512 GB NVMe SSD storage for NVR
- 0.96" LCM status display
- USB-C powered (adapter included)
Mechanical
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight: 519 g (1.1 lb)
Enclosure material: Polycarbonate
Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory: 3 GB DDR4
On-board storage: 512 GB NVMe SSD
Management interface: Ethernet, Bluetooth
Networking interface:
LAN: (4) 1/2.5 GbE RJ45 ports
WAN: (1) 1/2.5 GbE RJ45 port
IDS/IPS throughput: 1.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method: USB type C (5V DC/5A)
Supported voltage range: 100–240V AC
Max. power consumption: 16.1W
LCM display: 0.96" status display
Button: Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gateway Features
Performance:
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security:
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking:
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Design
Leistungen
Protokolle
Netzwerk
Sicherheit
Anschlüsse und Schnittstellen
Management-Funktionen
Energie
Gewicht und Abmessungen
Lieferumfang
Betriebsbedingungen
Zertifikate
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
