Waren-Nr.: 3257533

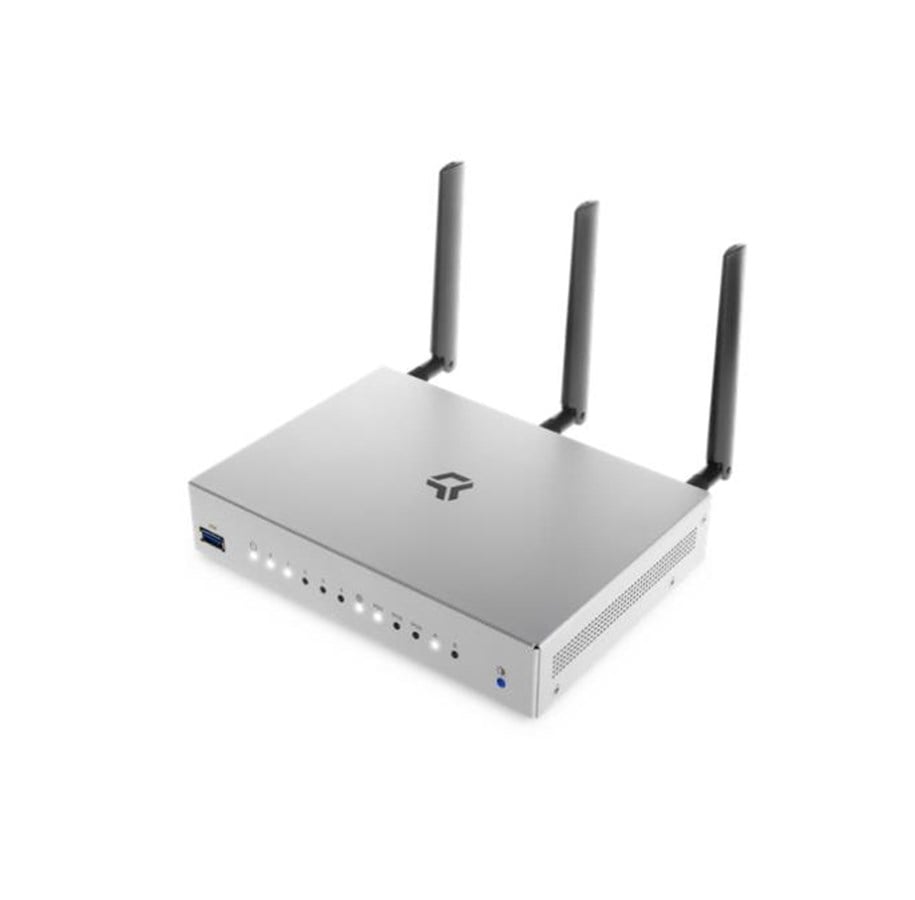

Turris Omnia 2020 - Silver - Wireless router 802.11a/b/g/n/Wi-Fi 5 Wave 1

Turris Omnia 2020 WLAN-Router Gigabit Ethernet Dual-Band (2,4 GHz/5 GHz) 4G Silber

Die Ware ist leider nicht mehr verfügbar.

Home router is necessary to connect you to the internet but it is idle most of the time, just eating electricity. Why not use it for more tasks?

With powerful hardware, Turris Omnia can handle gigabit traffic and still be able to do much more. You can use it as a home server, NAS, printserver and it even has a virtual server built-in.

Openness
Omnia uses an operating system based on OpenWrt. This means that you have an open Linux distribution in your device and can do anything you want. The source code is publicly available online.

Automatic updates
Unlike most other routers, Turris Omnia gets automatic updates to core components of the system for the lifetime of the device. Your home is thus protected from new cyber threats.

Distributed adaptive firewall
Omnia sends information about suspicious data streams to the Turris headquarters. The data recieved from thousands of routers are compared and if an attack is identified, updates are sent to all Turris devices.

Virtual server
Thanks to the 2GB RAM of Omnia you can use a built-in virtual server to run any Linux distribution (even Ubuntu or Debian) without risk to the main system.

Distributed adaptive firewall

- There is malicious traffic trying to get into your network from the internet and infect your devices. Fortunately, the Turris router is capable of monitoring all the traffic.
- When the Turris router detects suspicious traffic, it sends its fingerprint into the Turris headquarters. The information is evaluated there, compared with data from other Turris routers and in case an attack is detected, a protection is prepared.
- A new security fix is created and distributed to all Turris routers. Thus the users help to protect each other by sharing information about new security threats.
- Your home network, containing many devices often without any resistance to outside attacks, is protected.

Network Attached Storage (NAS)
Thanks to the two USB 3.0 ports and powerful CPU you can use Omnia also as a NAS with a performance of dedicated NAS storage, just for costs to run the device.

Network throughput
The internal network setup of Omnia is unique amongst home routers. Utilizing three gigabit ethernet lines, it offers better performance and more configuration options.

SFP connector
If you have an FTTH (Fiber To The Home) type of connection, Omnia can fully replace devices which have been connecting your home to the internet until now. Just insert the correct SFP module.

Backup connectivity
With use of USB or miniPCIe LTE modem you can create a backup connection and easily set its activation up in the situation when the main connection is not available.

Adjustable RGB LED
All of the twelve diods are fully programmable. Set any color, brightness, flashing interval or turning off at night.

Powerful antennas
With three powerful antennas and possibility of adding two more LTE antennas Omnia always guarantees smooth data transfer.

Extensibility
Omnia contains three mPCIe slots therefore offers enough space not just for Wi-Fi cards, but also for LTE modem or disk controller.

Adapter on the cable
The adapter is not on the plug, but on the cable. This keeps the remaining sockets free.

8 GB flash
Even if you install tons of programs, you still have some space left for other stuff.

Cryptochip
Lack of entropy can be a security weakness. That's why Omnia has a special cryptochip.

RTC battery
Information about exact time is very important for cryptography. When it is missing, it can facilitate an attack.

Easy VPN
Set up an encrypted connection to your corporate or home network with a few clicks.

Hersteller
Waren-Nr.
3257533
Modell
RTROM01-FCC
Zum Hersteller:
Ethernet-WAN
Ja
DSL-WAN
Nein
SIM-Karten-Slot
Ja
3G/4G USB Modem-Kompatibilität
Ja
WAN-Verbindungstyp
RJ-45
WLAN-Band
Dual-Band (2,4 GHz/5 GHz)
Top WLAN-Standard
Wi-Fi 5 (802.11ac)
WLAN Datentransferrate (max.)
1300 Mbit/s
WLAN-Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN-Datenübertragungsrate (erstes Band)
300 Mbit/s
WLAN-Datenübertragungsrate (zweites Band)
450 Mbit/s
Ethernet/LAN
Ja
Schnittstellentyp Ethernet-LAN
Gigabit Ethernet
Ethernet LAN Datentransferraten
10,100,1000 Mbit/s
Netzstandard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Portweiterleitung
Ja
Port-Auslösung
Ja
Statische Route
Ja
Medien-Server
Ja
VPN Unterstützung
OpenVPN
Mobilfunknetzgenerierung
4G
3G
Nein
4G
Nein
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
5
USB Anschluss
Ja
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
2
Speicherkartenslot(s)
Nein
Gleichstrom-Anschluss (DC)
Ja
Wake-on-LAN bereit
Ja
Reset-Knopf
Ja
MU-MIMO-Technologie
Ja
Unterstützte Sicherheitsalgorithmen
64-bit WEP, 128-bit WEP, SNMP, SSH, WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Firewall
Ja
Firewall
SPI
DoS Attacken Prävention
Ja
Filterung
Ja
MAC Adressen Filtern
Ja
DMZ-Unterstützung
Ja
DHCP-Client
Ja
DHCP-Server
Ja
Universal Plug and Play (UPnP)
Ja
Unterstützte Netzwerkprotokolle
IPv4, IPv6 (DHCPv6), OSPF, BGP, NAT64, DN64
Produkttyp
Tabletop-Router
Produktfarbe
Silber
Wandmontage
Ja
LED-Anzeigen
Aktivität, Leistung
Zertifizierung
CE, FCC
Mitgelieferte Kabel
LAN (RJ-45)
AC-Netzadapter
Ja
Betriebsanleitung
Ja
Antennen-Design
Extern
Antenne Zunahmeniveau (max)
4,6 dBi
Anzahl der Antennen
3
Sendeleistung
23 dBmW
Eingebauter Prozessor
Ja
Prozessor
Marvell ARMADA 385
Prozessortaktfrequenz
1600 MHz
Anzahl Prozessorkerne
2
Speicherkapazität
2048 MB
Flash-Speicher
8000 MB
Energiequelle
AC
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50 - 60 Hz
Ausgangsspannung
12 V
Ausgangsstrom
3,33 A
Stromverbrauch (Standardbetrieb)
40 W
Externes Netzteil
Ja
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%
Breite
190 mm
Tiefe
135 mm
Höhe
40 mm
Gewicht
1,18 kg

WAN-Verbindung

Ethernet-WAN
Ja
DSL-WAN
Nein
SIM-Karten-Slot
Ja
3G/4G USB Modem-Kompatibilität
Ja
WAN-Verbindungstyp
RJ-45

Wireless LAN Funktionen

WLAN-Band
Dual-Band (2,4 GHz/5 GHz)
Top WLAN-Standard
Wi-Fi 5 (802.11ac)
WLAN Datentransferrate (max.)
1300 Mbit/s
WLAN-Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN-Datenübertragungsrate (erstes Band)
300 Mbit/s
WLAN-Datenübertragungsrate (zweites Band)
450 Mbit/s

Netzwerk

Ethernet/LAN
Ja
Schnittstellentyp Ethernet-LAN
Gigabit Ethernet
Ethernet LAN Datentransferraten
10,100,1000 Mbit/s
Netzstandard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Portweiterleitung
Ja
Port-Auslösung
Ja
Statische Route
Ja
Medien-Server
Ja
VPN Unterstützung
OpenVPN

Mobiles Netzwerk

Mobilfunknetzgenerierung
4G
3G
Nein
4G
Nein

Anschlüsse und Schnittstellen

Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
5
USB Anschluss
Ja
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
2
Speicherkartenslot(s)
Nein
Gleichstrom-Anschluss (DC)
Ja

Management-Funktionen

Wake-on-LAN bereit
Ja
Reset-Knopf
Ja
MU-MIMO-Technologie
Ja

Sicherheit

Unterstützte Sicherheitsalgorithmen
64-bit WEP, 128-bit WEP, SNMP, SSH, WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Firewall
Ja
Firewall
SPI
DoS Attacken Prävention
Ja
Filterung
Ja
MAC Adressen Filtern
Ja
DMZ-Unterstützung
Ja

Protokolle

DHCP-Client
Ja
DHCP-Server
Ja
Universal Plug and Play (UPnP)
Ja
Unterstützte Netzwerkprotokolle
IPv4, IPv6 (DHCPv6), OSPF, BGP, NAT64, DN64

Design

Produkttyp
Tabletop-Router
Produktfarbe
Silber
Wandmontage
Ja
LED-Anzeigen
Aktivität, Leistung

Zertifikate

Zertifizierung
CE, FCC

Lieferumfang

Mitgelieferte Kabel
LAN (RJ-45)
AC-Netzadapter
Ja
Betriebsanleitung
Ja

Antenne

Antennen-Design
Extern
Antenne Zunahmeniveau (max)
4,6 dBi
Anzahl der Antennen
3
Sendeleistung
23 dBmW

Merkmale

Eingebauter Prozessor
Ja
Prozessor
Marvell ARMADA 385
Prozessortaktfrequenz
1600 MHz
Anzahl Prozessorkerne
2
Speicherkapazität
2048 MB
Flash-Speicher
8000 MB

Energie

Energiequelle
AC
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50 - 60 Hz
Ausgangsspannung
12 V
Ausgangsstrom
3,33 A
Stromverbrauch (Standardbetrieb)
40 W
Externes Netzteil
Ja

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%

Gewicht und Abmessungen

Breite
190 mm
Tiefe
135 mm
Höhe
40 mm
Gewicht
1,18 kg
