Waren-Nr.: 3349924

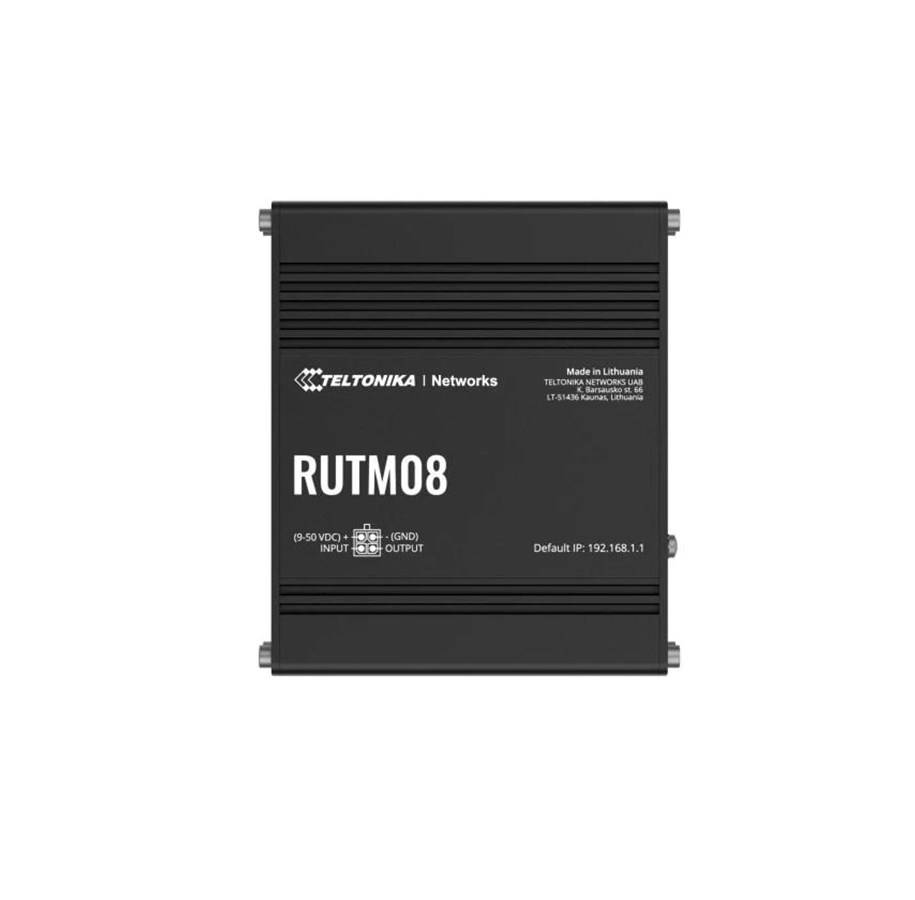

Teltonika RUTM08 Industrial Wired Router (RUTM08000000 / Standard package with EU PSU) - Router
Router 3-Port-Switch, 1GbE, IEEE 802.3u, PPP,, an DIN-Schiene montierbar, wandmontierbar, oberflächenmontierbar
99,58 €
82,98 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 5-7 Werktage Lieferzeit
The Teltonika RUTM08 router is engineered for reliability and robustness, supporting a wide range of networking needs with its comprehensive features. Operating within a temperature range of -40°C to 75°C, it ensures stable performance in challenging environments. The 16 MB flash memory combined with 256 MB DDR3 SDRAM allows efficient data handling, making it suitable for various applications from industrial to commercial settings. Its multiple compliance standards reflect a commitment to quality and safety, ensuring that it meets the diverse requirements of modern networking scenarios.
With support for wired connectivity including Ethernet, Fast Ethernet, and Gigabit Ethernet, the RUTM08 is built to handle extensive data traffic. Advanced features such as VLAN support, load balancing, and Dynamic Multipoint VPN allow easy network management and flexibility. The device also incorporates security protocols with encryption options and firewall capabilities, providing a secure networking environment for users. Designed for ease of mounting, this router supports DIN rail, wall, and surface mounting, making it adaptable to different installation requirements.
With support for wired connectivity including Ethernet, Fast Ethernet, and Gigabit Ethernet, the RUTM08 is built to handle extensive data traffic. Advanced features such as VLAN support, load balancing, and Dynamic Multipoint VPN allow easy network management and flexibility. The device also incorporates security protocols with encryption options and firewall capabilities, providing a secure networking environment for users. Designed for ease of mounting, this router supports DIN rail, wall, and surface mounting, making it adaptable to different installation requirements.
Hersteller
Waren-Nr.
3349924
Modell
RUTM08000000
EAN
4779051840465
Produktbeschreibung
Teltonika RUTM08 - Router - an DIN-Schiene montierbar, wandmontierbar, oberflächenmontierbar
Gerätetyp
Router - 3-Port-Switch (integriert)
Gehäusetyp
An DIN-Schiene montierbar, wandmontierbar, oberflächenmontierbar
WAN-Ports Anz.
1
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.3u, PPP
Netzwerk/Transportprotokoll
TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet
Routing Protocol
VRRP, statisches IP Routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, Policy-Based Routing (PBR), VXLAN
Remoteverwaltungsprotokoll
TLS, SSH, SMPP, SNMP, MQTT
VoIP-Protokolle
H.323, SIP
Leistungsmerkmale
Auto-Uplink (Auto MDI/MDI-X), WOL, RRD, schwarze Liste, White List, Captive Portal, RADIUS Server, PPP, NAT Support, DHCP-Relais, QoS, SQM, WMM-Unterstützung, Lastenausgleich, SSHFS-Unterstützung, PSK, IPSec NAT-T, DDos-Angriffschutz, port scan prevention, VLAN-Unterstützung, Web Filtering, GRE-Tunneling, DMVPN, FOTA, Teltonika RMS, passiv PoE unterstützt, Aluminiumgehäuse, M2M
Produktzertifizierungen
IEEE 802.3az, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3u, UPnP
Abmessungen (Breite x Tiefe x Höhe)
11.5 cm x 39.52 cm x 3.22 cm
Gewicht
353 g
Allgemein
Gerätetyp
Router - 3-Port-Switch (integriert)
Gehäusetyp
An DIN-Schiene montierbar, wandmontierbar, oberflächenmontierbar
Anschlusstechnik
Kabelgebunden
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.3u, PPP
Netzwerk/Transportprotokoll
TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet
Routing Protocol
VRRP, statisches IP Routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, Policy-Based Routing (PBR), VXLAN
Remoteverwaltungsprotokoll
TLS, SSH, SMPP, SNMP, MQTT
Verschlüsselungsalgorithmus
IKEv1, IKEv2, 3DES, 128-Bit AES, 192-Bit AES, 256-Bit-AES, 192-bit AES-GCM, AES-GCM, 256 Bit, 128-bit AES-GCM, DES, CBC, RC2, CAST5, 128-bit AES-CBC, 192-Bit AES-CBC, 256-bit AES-CBC
Authentifizierungsmethode
X.509-Zertifikate, RADIUS, TACACS+
Leistungsmerkmale
Auto-Uplink (Auto MDI/MDI-X), WOL, RRD, schwarze Liste, White List, Captive Portal, RADIUS Server, PPP, NAT Support, DHCP-Relais, QoS, SQM, WMM-Unterstützung, Lastenausgleich, SSHFS-Unterstützung, PSK, IPSec NAT-T, DDos-Angriffschutz, port scan prevention, VLAN-Unterstützung, Web Filtering, GRE-Tunneling, DMVPN, FOTA, Teltonika RMS, passiv PoE unterstützt, Aluminiumgehäuse, M2M
Produktzertifizierungen
IEEE 802.3az, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3u, UPnP, IP30, WEEE, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-4-11:2020, EN IEC 61000-4-3:2020, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
Prozessor
MediaTek MIPS 1004Kc 880 MHz
RAM
256 MB DDR3 SDRAM
Flash-Speicher
16 MB
Statusanzeiger
LAN, Stromversorgung
IP-Telefonie
VoIP-Protokolle
H.323, SIP
Erweiterung/Konnektivität
Schnittstellen
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x DI
1 x DO
USB 2.0: 1 x 4-polig USB Typ A
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x DI
1 x DO
USB 2.0: 1 x 4-polig USB Typ A
Stromversorgung
Stromversorgungsgerät
Externer Netzadapter - 18 watt
Verschiedenes
Enthaltene Kabel
1 x Netzwerkkabel - 1.5 m
Software / Systemanforderungen
Bereitgestelltes Betriebssystem
RutOS
Maße und Gewicht
Breite
11.5 cm
Tiefe
39.52 cm
Höhe
3.22 cm
Gewicht
353 g
Umgebungsbedingungen
Min Betriebstemperatur
-40 °C
Max. Betriebstemperatur
75 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90 % (nicht-kondensierend)
