Waren-Nr.: 3223035

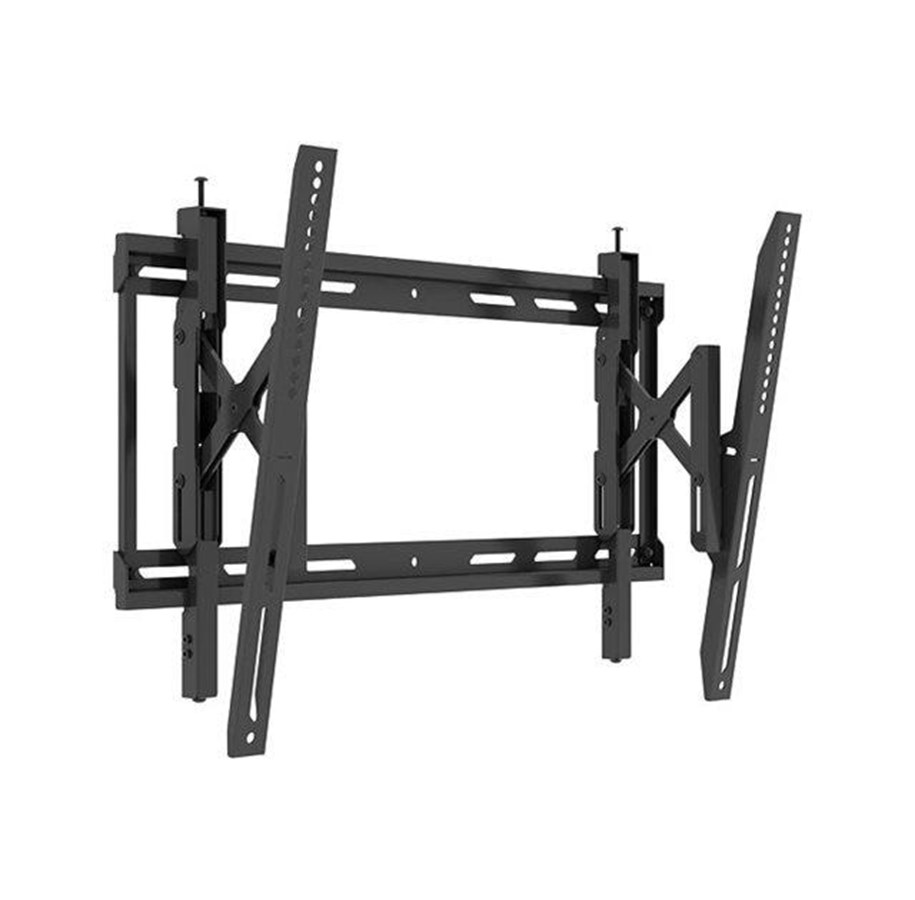

Multibrackets M mounting component - for TV - black - Max 60 kg - recommended for 43"-86"

Befestigungskit (Wandmontage), für TV, push-in pop-out, Stahl, Schwarz, Bildschirmgröße: 109.2-218.4 cm (43"-86")

122,02 € 101,68 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit

Introducing innovative design combined with a push in pop out wall mount partially pre-assembled right out of the box, makes this one of the fastest installing service wall mounts ever! With the market for large displays with numerous accessories connected to the backside of the display or TV the need for a high-quality, affordable and installer-friendly mounting equipment has become in the need by many.This premium push-out tilt wall mount represents the next level of advanced push-out and tilt technology, allowing you to tilt your TV in 4 different directions. Not only up and down but left and right for semi swivel capability. This mount provides 15cm of extension. This extension allows even the larger TVs to achieve a greater tilt range. Large TV's installed on traditional tilting mounts often hit the wall, limiting the maximum tilt that can be achieved. This push-out tilt wall mount solves this by extending from the wall offering large size TVs a greater tilt range.M universal push-out tilt 600 is an easy service mount quick to install, and easy to configure. Made especially for easy access applications. This is a professional home or office mount focusing on screen installations, easy and fast installation and simplified maintenance. Left and right fine tune adjustment functionality. This is a wall mount that can be called "an installer's dream". With the M universal push-out tilt 600 you can install displays in a wide range 43" - 86" and reach multiple different configurations with its 4 different tilt directions or push out positions. Finally, you can leave the tedious wall spacers behind to reach the backside of your display.The installation process is simple. As with other Multibrackets products the installation is built on that the rail is first installed onto the wall. No measuring and guessing needed. When the arms are hanging on the rail the display can be moved left and right to find the exact right position for the display, lateral shifting.The M universal push out tilt 600 push-in pop-out feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when installing a display with accessories like camera, sound or video bar, game console, Apple TV or any other media player. Simply push against the screen to release the lock, then the screen will be possible to move out, you do not need to remove any other details to access the back of the screen for maintenance or when placed in recessed areas. The pop-out feature is handled by its scissor arm construction expanding out. Of course, the screen is as easily pushed back into place after maintenance is finished.

Hersteller
Waren-Nr.
3223035
Modell
7350105216299
EAN
7350105216299
Zum Hersteller:
Produktbeschreibung
Multibrackets M Befestigungskit - für TV - push-in pop-out - Schwarz
Produkttyp
Befestigungskit
Montagekomponenten
Wandmontage
Abmessungen (Breite x Tiefe x Höhe)
68.6 cm x 6.1 cm x 48 cm
Neigung
-2° bis 12°
Anpassungen
Seitlich
Gewicht
5.5 kg
Empfohlene Verwendung
TV
Empfohlene Display-Größe
109.2-218.4 cm (43"-86")
VESA-Halterung
100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 400 mm, 600 x 400 mm
Max. Ladegewicht
60 kg
Material
Stahl
Farbe
Schwarz

Allgemein

Breite
68.6 cm
Tiefe
6.1 cm
Höhe
48 cm
Gewicht
5.5 kg
Material
Stahl
Farbe
Schwarz

Möbel für audiovisuelle Geräte

Typ
Befestigungskit
Montagekomponenten
Wandmontage
Empfohlene Verwendung
TV
VESA-Halterung
100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 400 mm, 600 x 400 mm
Empfohlene Display-Größe
109.2-218.4 cm (43"-86")
Neigung
-2° bis 12°
Anpassungen
Seitlich
Max. Ladegewicht
60 kg
Montage erforderlich
Nein

Details zu Abmessungen & Gewicht

Transportabmessungen (B x T x H)/Gewicht
75.8 cm x 15.8 cm x 8.8 cm / 6 kg

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
