Waren-Nr.: 3226544

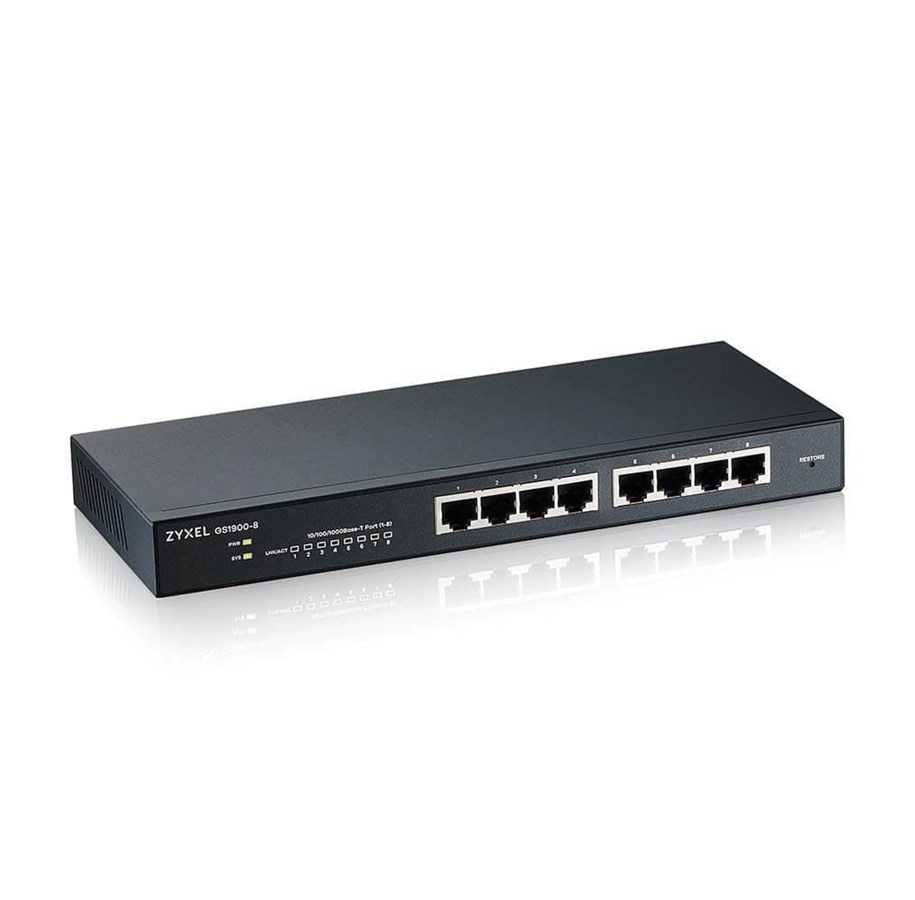

ZyXEL GS1900-8-port GbE Smart Managed Switch

Zyxel GS1900-8 Managed L2 Gigabit Ethernet (10/100/1000) Schwarz

63,05 € 52,54 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance-built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Hersteller
Waren-Nr.
3226544
Modell
GS1900-8-EU0102F
EAN
4718937621163
Zum Hersteller:
Produktbeschreibung
Zyxel GS1900-8 - Switch - 8 Anschlüsse - Smart
Gerätetyp
Switch - 8 Anschlüsse - Smart
Untertyp
Gigabit Ethernet
Ports
8 x 10/100/1000
Leistung
Switching-Kapazität: 16 Gbit/s
Übertragungsleistung: 11,9 Mpps
Packet-Puffergröße: 525 KB
Größe der MAC-Adresstabelle
8000 Einträge
Jumbo-Rahmenunterstützung
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, STP, RSTP, MSTP
Remoteverwaltungsprotokoll
SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9
Leistungsmerkmale
QoS, VLAN-Unterstützung, IGMP Snooping, LAG, Schutz vor DoS-Angriffen, IPv6-Unterstützung, ZON, Auto-Uplink (Auto MDI/MDI-X), Flusskontrolle, Syslog-Unterstützung, Store-and-Forward, ohne Lüfter, WRR Queuing, LACP-Support, LLDP-Support, Port Security, MIB, SPQ, CoS, gekennzeichnetes VLAN
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1Q
Stromversorgung
Wechselstrom 100-240 V (50/60 Hz)
Abmessungen (Breite x Tiefe x Höhe)
25 cm x 10.4 cm x 2.7 cm
Gewicht
650 g

Allgemein

Gerätetyp
Switch - 8 Anschlüsse - Smart
Gehäusetyp
Desktop, wandmontierbar
Untertyp
Gigabit Ethernet
Ports
8 x 10/100/1000
Leistung
Switching-Kapazität: 16 Gbit/s
Übertragungsleistung: 11,9 Mpps
Packet-Puffergröße: 525 KB
Größe der MAC-Adresstabelle
8000 Einträge
Jumbo-Rahmenunterstützung
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, STP, RSTP, MSTP
Remoteverwaltungsprotokoll
SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9
Verschlüsselungsalgorithmus
SSL
Authentifizierungsmethode
RADIUS, TACACS+
Leistungsmerkmale
QoS, VLAN-Unterstützung, IGMP Snooping, LAG, Schutz vor DoS-Angriffen, IPv6-Unterstützung, ZON, Auto-Uplink (Auto MDI/MDI-X), Flusskontrolle, Syslog-Unterstützung, Store-and-Forward, ohne Lüfter, WRR Queuing, LACP-Support, LLDP-Support, Port Security, MIB, SPQ, CoS, gekennzeichnetes VLAN
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1Q
Statusanzeiger
Stromversorgung, System, Link/Aktivität

Erweiterung/Konnektivität

Schnittstellen
8 x 1000Base-T RJ-45

Stromversorgung

Stromversorgungsgerät
Externer Netzadapter
Erforderliche Netzspannung
Wechselstrom 100-240 V (50/60 Hz)
Leistungsaufnahme im Betrieb
5 watt

Verschiedenes

Zubehör im Lieferumfang
Wandmontagekit
MTBF
1,146,942 Stunden
Produktzertifizierungen
RoHS, EMI FCC Class A, RCM Class A, BSMI CNS 13438, BSMI CNS 14336-1, EN 62368-1

Maße und Gewicht

Breite
25 cm
Tiefe
10.4 cm
Höhe
2.7 cm
Gewicht
650 g

Abmessungen & Gewicht (Transport)

Transportbreite
30.2 cm
Transporttiefe
22.7 cm
Transporthöhe
6.4 cm
Transportgewicht
1.04 kg

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 95% (nicht kondensierend)
Min. Lagertemperatur
-40 °C
Max. Lagertemperatur
70 °C
Zulässige Luftfeuchtigkeit bei Lagerung
10 - 95% (nicht kondensierend)
