Waren-Nr.: 3448513
MERCUSYS MS110P

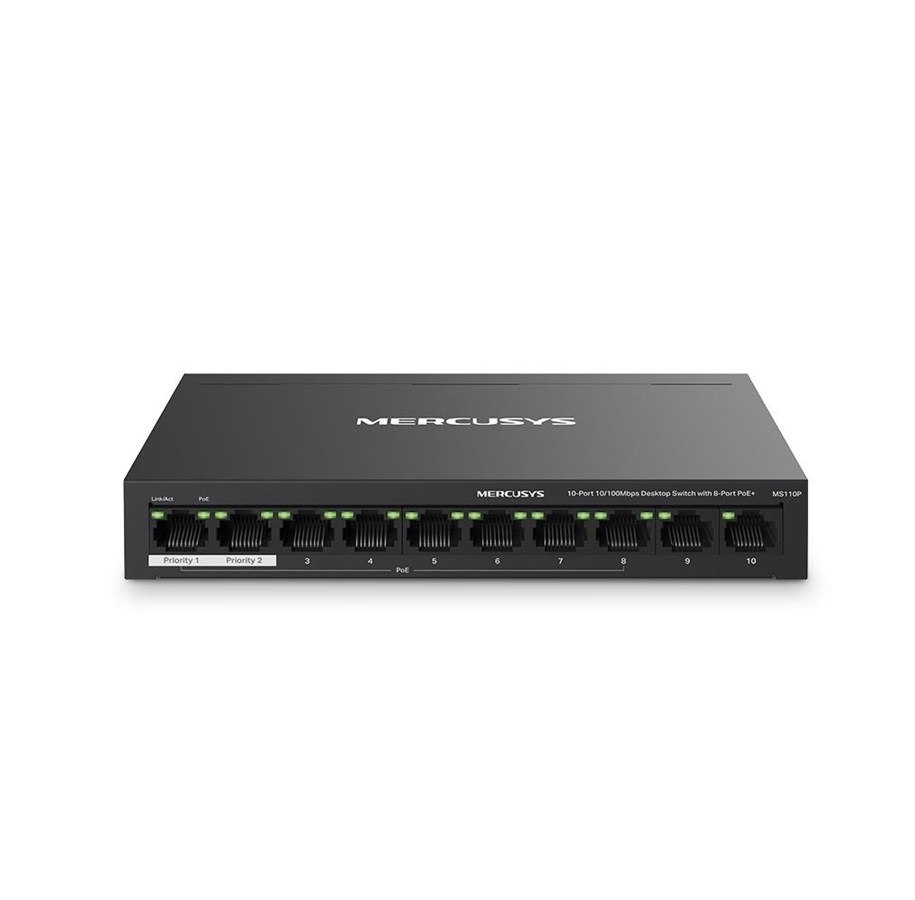

Mercusys MS110P Netzwerk-Switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Schwarz
26,74 €
22,28 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Bestellware. 18-20 Tage Lieferzeit
8 PoE+ Ports (65 W Budget) for Network Deployment
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Hersteller
Waren-Nr.
3448513
Modell
MS110P
EAN
6957939001162
Zum Hersteller:
Switch-Typ
Managed
Web-basiertes Management
Ja
Anzahl der basisschaltenden RJ-45 Ethernet Ports
10
Basic Switching RJ-45 Ethernet Ports-Typ
Fast Ethernet (10/100)
Netzstandard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G-Unterstützung
Nein
Vollduplex
Ja
Richtlinienbasiertes Routing
Ja
Unterstützung Datenflusssteuerung
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN Datentransferraten
10,100 Mbit/s
Auto-Negotiation-Funktion
Ja
MAC-Adressentabelle
2000 Eintragungen
Rack-Einbau
Nein
Stapelbar
Nein
Produktfarbe
Schwarz
Wandmontage
Ja
Energiequelle
AC
Netzteil enthalten
Ja
AC Eingangsspannung
220 V
AC Eingangsfrequenz
50 Hz
DC input Spannung
53.5 V
Eingangsstrom
1.31 A
Stromverbrauch (Standardbetrieb)
2,96 W
Stromverbrauch (max.)
77,52 W
Power over Ethernet (PoE)
Ja
Anzahl Power over Ethernet (PoE) Anschlüsse
8
Anzahl Power over Ethernet plus (PoE+) Anschlüsse
2
Power over Ethernet (PoE) Leistung pro Anschluss
65 W
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-40 - 70 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Wärmeableitung
263,568 BTU/h
Breite
171 mm
Tiefe
98 mm
Höhe
27 mm
Mitgelieferte Kabel
AC
Schnellstartübersicht
Nein
Management-Funktionen
Switch-Typ
Managed
Web-basiertes Management
Ja
Anschlüsse und Schnittstellen
Anzahl der basisschaltenden RJ-45 Ethernet Ports
10
Basic Switching RJ-45 Ethernet Ports-Typ
Fast Ethernet (10/100)
Netzwerk
Netzstandard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G-Unterstützung
Nein
Vollduplex
Ja
Richtlinienbasiertes Routing
Ja
Unterstützung Datenflusssteuerung
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN Datentransferraten
10,100 Mbit/s
Auto-Negotiation-Funktion
Ja
Datenübertragung
MAC-Adressentabelle
2000 Eintragungen
Design
Rack-Einbau
Nein
Stapelbar
Nein
Produktfarbe
Schwarz
Wandmontage
Ja
Energie
Energiequelle
AC
Netzteil enthalten
Ja
AC Eingangsspannung
220 V
AC Eingangsfrequenz
50 Hz
DC input Spannung
53.5 V
Eingangsstrom
1.31 A
Stromverbrauch (Standardbetrieb)
2,96 W
Stromverbrauch (max.)
77,52 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Anzahl Power over Ethernet (PoE) Anschlüsse
8
Anzahl Power over Ethernet plus (PoE+) Anschlüsse
2
Power over Ethernet (PoE) Leistung pro Anschluss
65 W
Betriebsbedingungen
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-40 - 70 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Wärmeableitung
263,568 BTU/h
Gewicht und Abmessungen
Breite
171 mm
Tiefe
98 mm
Höhe
27 mm
Lieferumfang
Mitgelieferte Kabel
AC
Schnellstartübersicht
Nein
