Waren-Nr.: 3064703

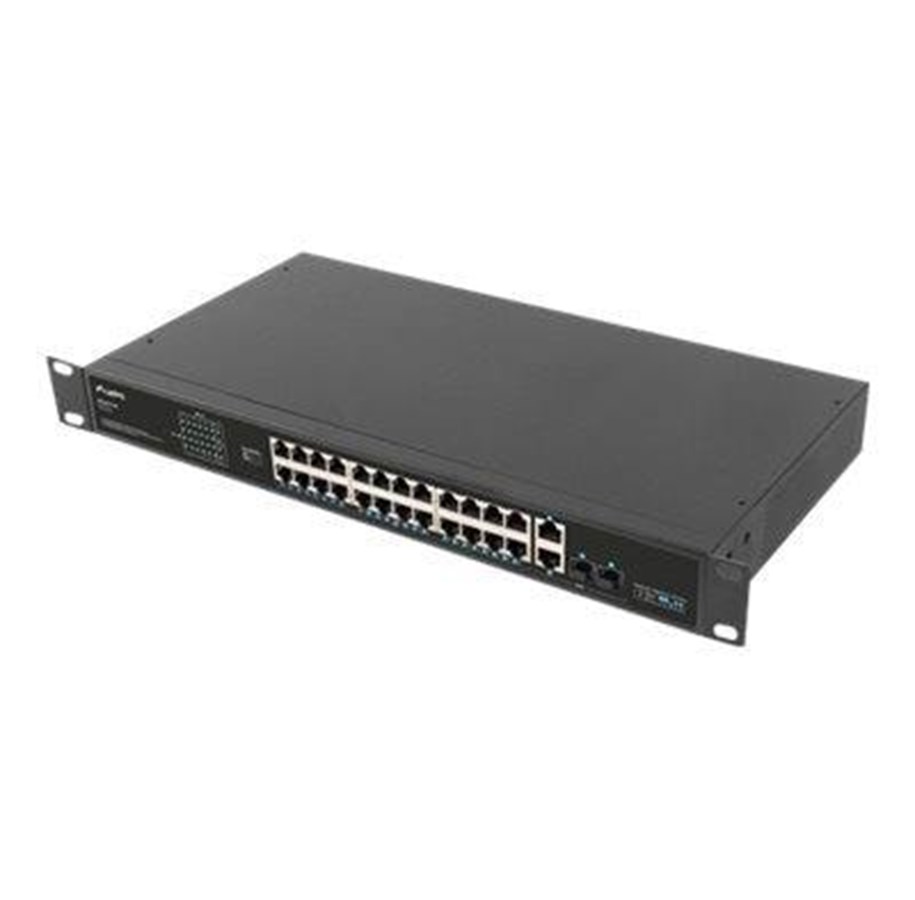

Lanberg RSFE-24P-2C-360 - switch - 24 ports - unmanaged - rack-mountable
Switch, unmanaged, 24 x 10/100 (PoE+) + 2 x Gigabit SFP (Uplink) + 2 x 1000Base-LX/SX, an Rack montierbar, PoE+ (360 W)
168,80 €
140,67 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-24P-2C-360 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 360 W. All of this is combined with data transmission at the same time.As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Hersteller
Waren-Nr.
3064703
Modell
RSFE-24P-2C-360
EAN
5901969429329
Zum Hersteller:
Produktbeschreibung
Lanberg RSFE-24P-2C-360 - Switch - 24 Anschlüsse - unmanaged - an Rack montierbar
Gerätetyp
Switch - 24 Anschlüsse - unmanaged
Gehäusetyp
An Rack montierbar 1U
Untertyp
Fast Ethernet
Ports
24 x 10/100 (PoE+) + 2 x Gigabit SFP (Uplink) + 2 x 1000Base-LX/SX
Power Over Ethernet (PoE)
PoE+
PoE-Budget
360 W
Leistung
Schaltbandbreite: 8,8 Gbit/s
Größe der MAC-Adresstabelle
16.000 Einträge
Leistungsmerkmale
Metallgehäuse, 4 Mbit-Paketpuffer, ohne Lüfter, VLAN-Unterstützung, 6KV ESD Protector
Produktzertifizierungen
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Stromversorgung
Wechselstrom 100-240 V
Abmessungen (Breite x Tiefe x Höhe)
44 cm x 20.7 cm x 4.4 cm
Gewicht
2.45 kg
Allgemein
Gerätetyp
Switch - 24 Anschlüsse - unmanaged
Gehäusetyp
An Rack montierbar 1U
Untertyp
Fast Ethernet
Ports
24 x 10/100 (PoE+) + 2 x Gigabit SFP (Uplink) + 2 x 1000Base-LX/SX
Power Over Ethernet (PoE)
PoE+
PoE-Budget
360 W
Leistung
Schaltbandbreite: 8,8 Gbit/s
Größe der MAC-Adresstabelle
16.000 Einträge
Leistungsmerkmale
Metallgehäuse, 4 Mbit-Paketpuffer, ohne Lüfter, VLAN-Unterstützung, 6KV ESD Protector
Produktzertifizierungen
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Statusanzeiger
Status
Erweiterung/Konnektivität
Schnittstellen
24 x Fast Ethernet RJ-45 PoE+ - 30 W
2 x 100/1000 SFP
2 x 1000Base-LX/SX
2 x 100/1000 SFP
2 x 1000Base-LX/SX
Stromversorgung
Stromversorgungsgerät
Internes Netzteil
Erforderliche Netzspannung
Wechselstrom 100-240 V
Leistungsaufnahme im Betrieb
370 watt
Verschiedenes
Rackmontagesatz
Mitgeliefert
Produktzertifizierungen
IP20
Maße und Gewicht
Breite
44 cm
Tiefe
20.7 cm
Höhe
4.4 cm
Gewicht
2.45 kg
Umgebungsbedingungen
Min Betriebstemperatur
5 °C
Max. Betriebstemperatur
55 °C
Zulässige Luftfeuchtigkeit im Betrieb
0 - 80%
