Waren-Nr.: 2864956

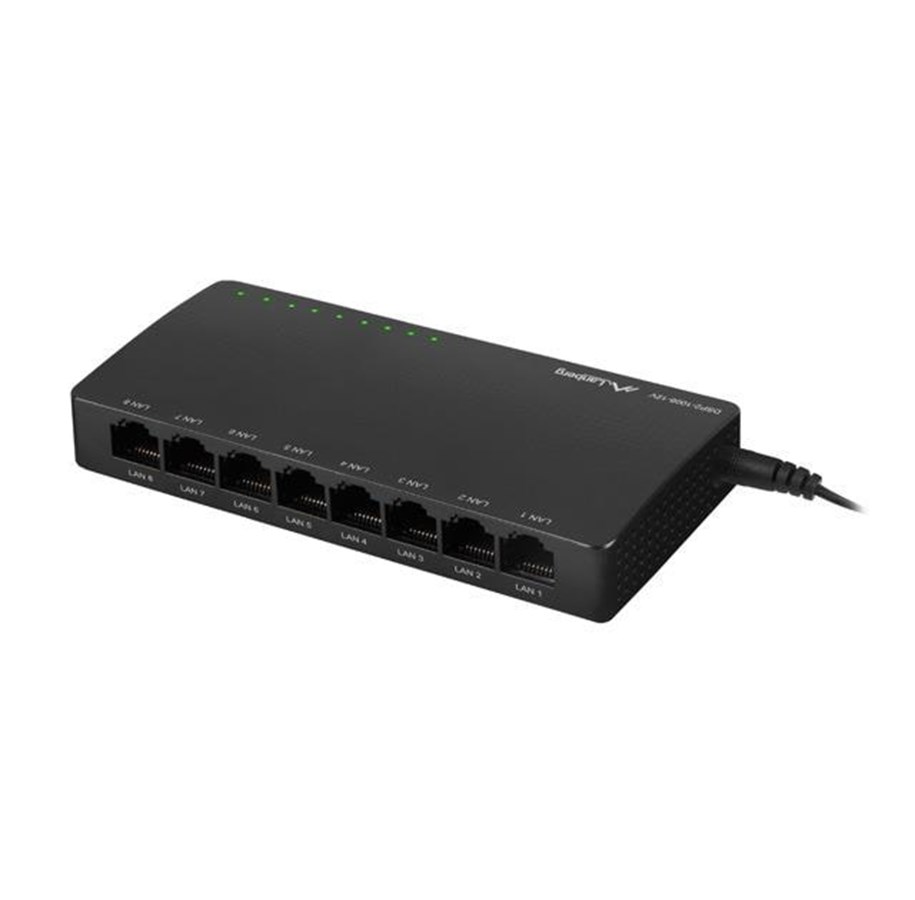

Lanberg DSP2-1008-12V 8-Port Gigabit Ethernet Unmanaged Switch

Switch, unmanaged, 8 x 10/100/1000, Desktop, wandmontierbar, AC 100, 240 V

22,92 € 19,10 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit

Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with eight Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug-and-Play operation principles. Product provides switching functions for eight 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI/MDI-X support.

The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.

The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.

Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.

Hersteller
Waren-Nr.
2864956
Modell
DSP2-1008-12V
EAN
5901969424171
Zum Hersteller:
Produktbeschreibung
Lanberg DSP2-1008-12V - Switch - 8 Anschlüsse - unmanaged
Gerätetyp
Switch - 8 Anschlüsse - unmanaged
Untertyp
Gigabit Ethernet
Ports
8 x 10/100/1000
Leistung
Schaltbandbreite: 16 Gbit/s
Größe der MAC-Adresstabelle
4000 Einträge
Leistungsmerkmale
Flusskontrolle, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Store-and-Forward, Halbduplex-Modus, Vollduplex-Modus, geeignet für Wandmontage, Kunststoffgehäuse, Back Pressure Support, passiv PoE unterstützt, Speichern der MAC-Adresse, Alterung MAC-Adresse
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Stromversorgung
AC 100 - 240 V (50/60 Hz)
Abmessungen (Breite x Tiefe x Höhe)
13.7 cm x 8.9 cm x 2.8 cm
Gewicht
240 g

Allgemein

Gerätetyp
Switch - 8 Anschlüsse - unmanaged
Gehäusetyp
Desktop, wandmontierbar
Untertyp
Gigabit Ethernet
Ports
8 x 10/100/1000
Leistung
Schaltbandbreite: 16 Gbit/s
Größe der MAC-Adresstabelle
4000 Einträge
Leistungsmerkmale
Flusskontrolle, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Store-and-Forward, Halbduplex-Modus, Vollduplex-Modus, geeignet für Wandmontage, Kunststoffgehäuse, Back Pressure Support, passiv PoE unterstützt, Speichern der MAC-Adresse, Alterung MAC-Adresse
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Prozessor
1 x Realtek Semiconductor RTL8370N-VB
Statusanzeiger
Stromversorgung, Link/Aktivität

Erweiterung/Konnektivität

Schnittstellen
8 x 1000Base-T RJ-45

Stromversorgung

Stromversorgungsgerät
Externer Netzadapter
Gestellte Leistung
12 V - 0.5 A
Erforderliche Netzspannung
AC 100 - 240 V (50/60 Hz)
Leistungsaufnahme im Betrieb
4.53 watt

Verschiedenes

Produktzertifizierungen
Plug and Play, RoHS, WEEE

Maße und Gewicht

Breite
13.7 cm
Tiefe
8.9 cm
Höhe
2.8 cm
Gewicht
240 g

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
0 - 85%
