Waren-Nr.: 3235302

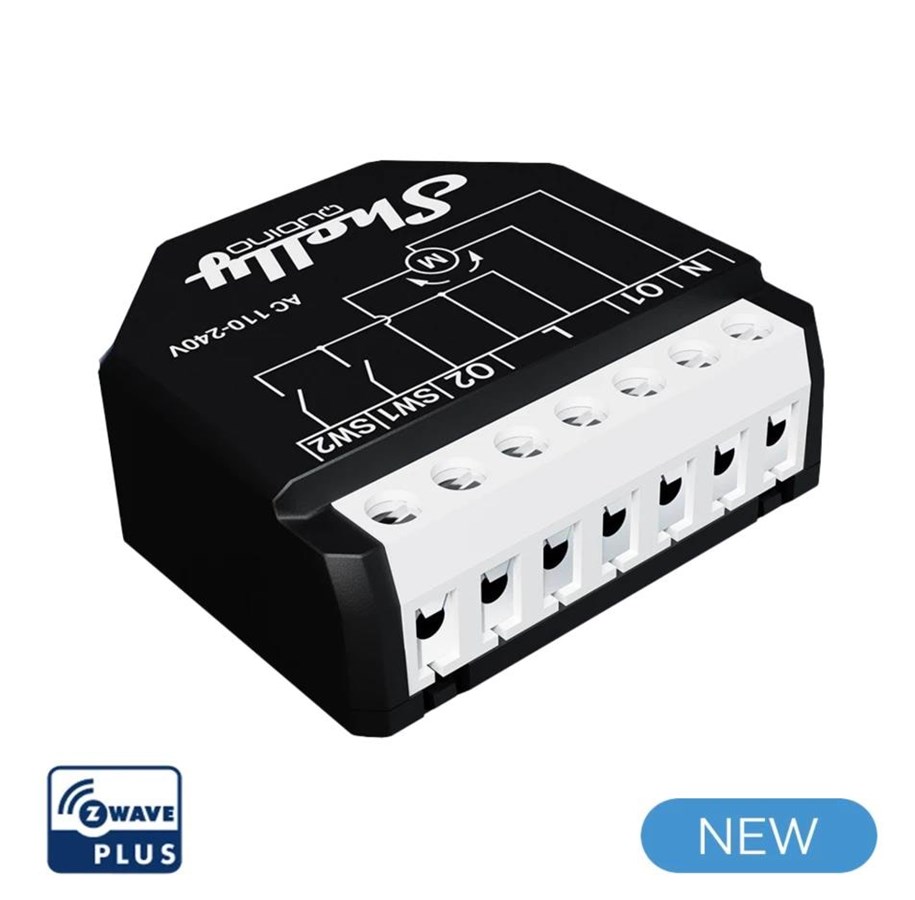

Shelly Qubino Wave Shutter

Shelly Qubino Wave Shutter enables remote control of motorized shades, rollers, blinds, windows, awnings, or any device powered by a bi-directional AC motor.

Auf Lager
16,84 € Aktion abgelaufen
31,44 €
26,20 € exkl. MwSt.
Günstigste Versandoption 6,99 €
3 Stk. Auf Lager. 2-4 Werktage Lieferzeit

Shelly Qubino Wave Shutter enables remote control of motorized shades, rollers, blinds, windows, awnings, or any device powered by a bi-directional AC motor. It supports control over the tilt position of the venetian blind slats. You can control it either via your smartphone/tablet or according to schedules or scenes, while retaining the option for manual operation with a wall switch. Precise positioning is supported for motors equipped with mechanical or electronic end limit switches.Features:•Control over the tilt position of the venetian blind slats.•Supports push-buttons/momentary switches and toggle switches.•Measures power consumption of the connected devices on each channel.•Extended wireless range – up to 40 m indoors.•Small size ensures the simplest installation behind every wall switch or wall socket.•SmartStart for the automatic set-up.•OTA Firmware update for over-the-air updates.•Security Vault™ ensures the highest level of security with features, such as secure boot, secure key management, secure debug, and more.•Security 2 Authenticated.•Extremely low energy consumption: less than 0.3 W.•Works with Z-Wave certified hubs and over 4000 Z-Wave devices.

Hersteller
Waren-Nr.
3235302
Modell
Shelly_W_Shutter
EAN
3800235269008
Kontaktieren Sie den Hersteller
Produkttyp
Intelligentes Relais
Produktfarbe
Schwarz
Gehäusematerial
Kunststoff
Maximum Innenabstand
40 m
Übermittlungsleistung
25 dBmW
Sonnenaufgang/Untergangszeiten
Ja
Fernbedienung
Ja
Stromverbrauch (Standardbetrieb)
0,3 W
Stromstärke (maximal)
10 A
AC Eingangsspannung
110 - 230 V
Abmessungen (BxTxH)
37 x 42 x 16 mm
Gewicht
29 g
Betriebstemperatur
-20 - 40 °C
Relative Luftfeuchtigkeit in Betrieb
30 - 70%

Merkmale

Produkttyp
Intelligentes Relais
Produktfarbe
Schwarz
Gehäusematerial
Kunststoff
Maximum Innenabstand
40 m
Übermittlungsleistung
25 dBmW
Sonnenaufgang/Untergangszeiten
Ja
Fernbedienung
Ja

Energie

Stromverbrauch (Standardbetrieb)
0,3 W
Stromstärke (maximal)
10 A
AC Eingangsspannung
110 - 230 V

Gewicht und Abmessungen

Abmessungen (BxTxH)
37 x 42 x 16 mm
Gewicht
29 g

Betriebsbedingungen

Betriebstemperatur
-20 - 40 °C
Relative Luftfeuchtigkeit in Betrieb
30 - 70%

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
