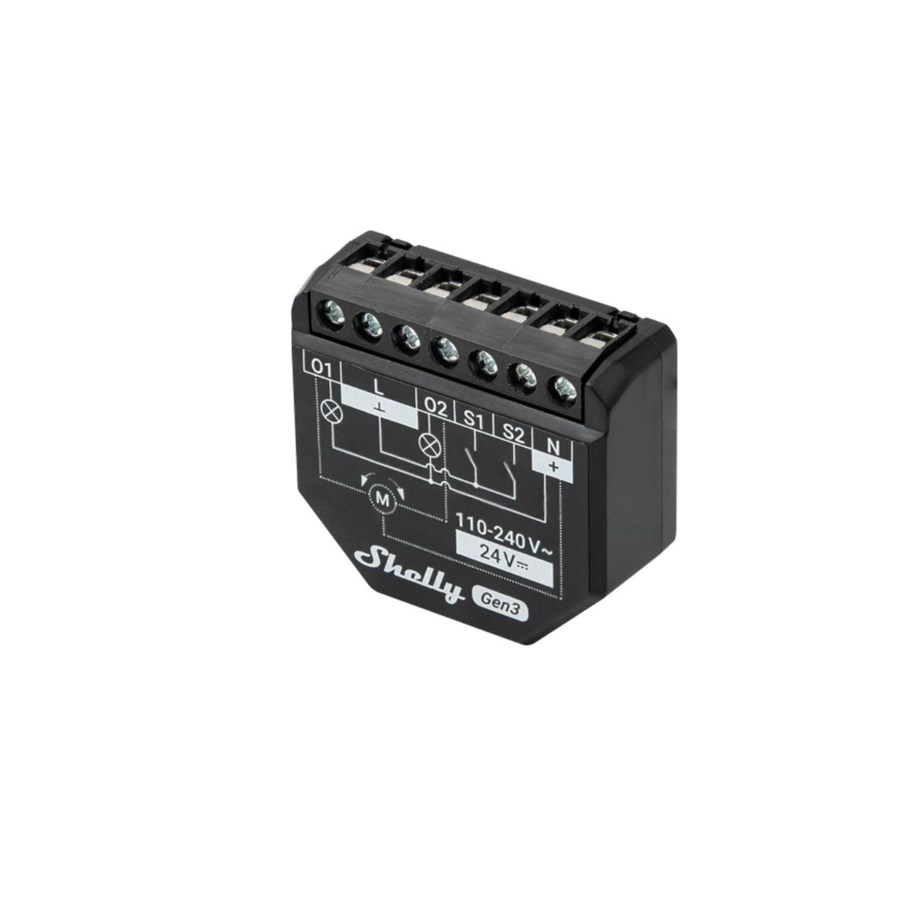

Shelly 2PM Gen3

Shelly 2PM Gen3 is a WiFi-controlled 2-channel relay, primarily suitable for automating roller shutters, blinds, awnings, and all two-way AC motors. The two integrated power meters allow for measuring the consumption of each channel separately (PM = Power Metering), making the device also ideal for controlling two channels of lights or two sockets. The device can handle up to 10A per channel and a maximum of 16A in total. Shelly Plus 2PM is designed for installation behind the switch, socket, or lamp outlet and fits in most wall and ceiling boxes thanks to its compact design. Shelly 2PM Gen3 is easily set up and controlled through the Shelly Smart Control app or your preferred Smart Home or Smart Building system. Shelly devices work 100% locally and only require a local network to operate. Shelly can be used alone in the Shelly Smart Control app or with more than 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey, KNX, and many more. Function Shelly 2PM Gen3 has many applications. It can be powered with 24V DC or 110-230V AC. Shelly 2PM has two switch inputs, which are optional to use. The device automatically measures power consumption on each channel, which can be monitored through the Shelly Smart Control app and easily used for automations. Shelly 2PM can be used for many purposes such as: Two-channel light control, Socket control, Control of roller shutters, blinds, awnings, garage doors, and similar. Connection Shelly 2PM Gen3 can connect to the internet or the local network via 2.4 GHz WiFi. Additionally, the device has built-in Bluetooth like the rest of the Pro, Plus, and Gen3 devices, so it can also be used as a gateway for Shelly Bluetooth battery-powered devices. All Shelly devices work locally without connection to Shelly Cloud, but it is recommended to activate it for easy data storage and increased functionality. The devices can also communicate via MQTT, HTTP, and WebSocket. All support TLS. Hardware The device is equipped with generation 3 hardware, which includes the powerful ESP-Shelly-C38F CPU with 8MB flash. This makes Shelly 2PM Gen3 future-proof and allows for scripting functions and virtual devices for advanced and customized functionality.
