Waren-Nr.: 3351657

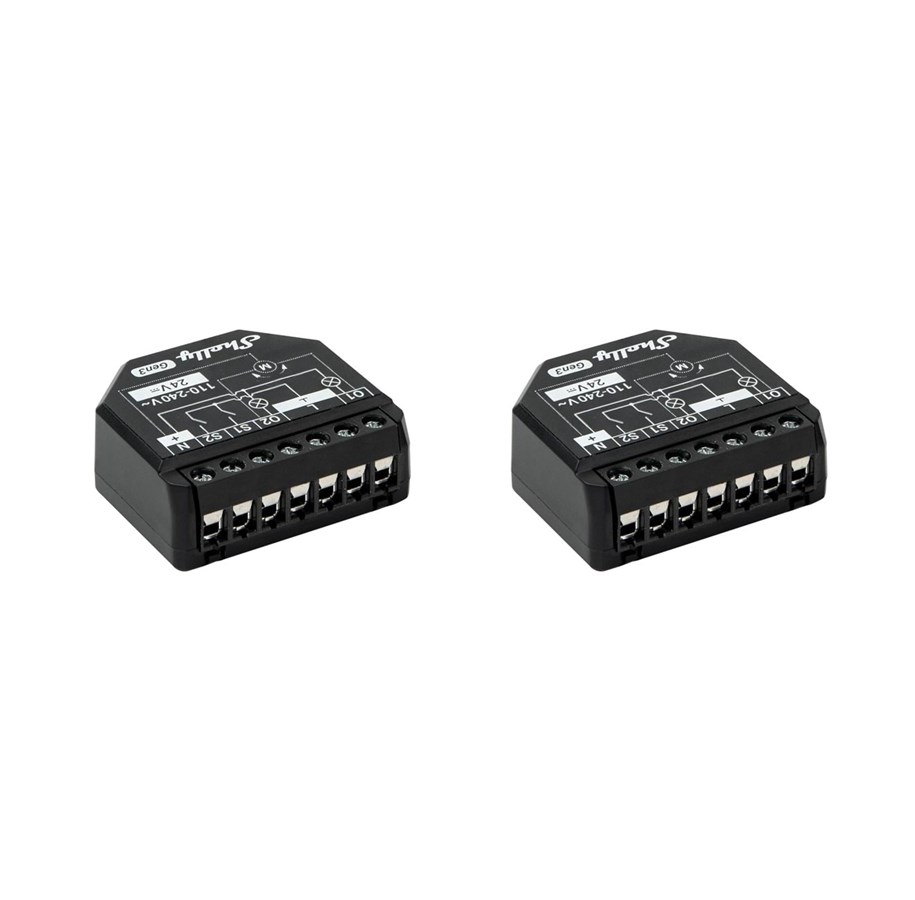

Shelly 2PM Gen3 - 2 pack

Shelly 2PM Gen3 is a WiFi-controlled 2-channel relay, primarily suitable for automating roller shutters, blinds, awnings, and all two-way AC motors. The two integrated power meters allow for measuring the consumption of each channel separately (PM = Power Metering), making the device also ideal for controlling two channels of lights or two sockets. The device can handle up to 10A per channel and a maximum of 16A in total. Shelly Plus 2PM is designed for installation behind the switch, socket, or lamp outlet and fits in most wall and ceiling boxes thanks to its compact design. Shelly 2PM Gen3 is easily set up and controlled through the Shelly Smart Control app or your preferred Smart Home or Smart Building system. Shelly devices work 100% locally and only require a local network to operate. Shelly can be used alone in the Shelly Smart Control app or with more than 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey, KNX, and many more. Function Shelly 2PM Gen3 has many applications. It can be powered with 24V DC or 110-230V AC. Shelly 2PM has two switch inputs, which are optional to use. The device automatically measures power consumption on each channel, which can be monitored through the Shelly Smart Control app and easily used for automations. Shelly 2PM can be used for many purposes such as: Two-channel light control, Socket control, Control of roller shutters, blinds, awnings, garage doors, and similar. Connection Shelly 2PM Gen3 can connect to the internet or the local network via 2.4 GHz WiFi. Additionally, the device has built-in Bluetooth like the rest of the Pro, Plus, and Gen3 devices, so it can also be used as a gateway for Shelly Bluetooth battery-powered devices. All Shelly devices work locally without connection to Shelly Cloud, but it is recommended to activate it for easy data storage and increased functionality. The devices can also communicate via MQTT, HTTP, and WebSocket. All support TLS. Hardware The device is equipped with generation 3 hardware, which includes the powerful ESP-Shelly-C38F CPU with 8MB flash. This makes Shelly 2PM Gen3 future-proof and allows for scripting functions and virtual devices for advanced and customized functionality.

91,12 € 75,93 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Bestellt: auf Lager erwartet 25.09.2026

The Shelly 2PM Gen3 from Allterco Robotics is a versatile relay controller designed for integrated systems and automation. With a power measuring function, this device allows for efficient monitoring of energy consumption, making it ideal for smart homes and energy-conscious environments. It features support for scripting, allowing users to customize and automate their control processes, while safety features such as overheat and overvoltage protection ensure reliable operation under varying conditions. Operating efficiently within a wide temperature range from -20°C to 40°C and suitable for 30% to 70% humidity environments, the Shelly 2PM Gen3 is built with durability in mind. Its compatibility with various protocols, including MQTT, HTTPS, and WebSockets, ensures seamless integration with existing smart home systems, enhancing connectivity and control through Bluetooth and Wi-Fi technologies. The device's ability to function in gateway mode adds to its versatility, supporting a wide range of IoT applications.

Hersteller
Waren-Nr.
3351657
Modell
Shelly_2PM_Gen3_2er
EAN
3800235261910
Kontaktieren Sie den Hersteller
Produktbeschreibung
Shelly 2PM Gen3 - Relais-Controller - 802.11b/g/n, Bluetooth 4.2 - Schwarz (Packung mit 2)
Produkttyp
Relais-Controller
Packungsmenge
2 (Spezifikationen gelten für einen Artikel)
Platzierung / Befestigung
In Wanddose montierbar
Funktionen
Leistungsmessung, Rollladensteuerung, Lichtsteuerung, Elektronik ein-/ausschalten
Stromquelle
Verdrahtet
Internet of Things (IoT) Plattform
Google Home
Intelligenter Assistent
Google Assistant, Alexa
Konnektivität
Kabellos - 802.11b/g/n, Bluetooth 4.2
Frequenzband
2412 - 2472 MHz
Farbe
Schwarz
Abmessungen (Breite x Tiefe x Höhe)
4.2 cm x 1.6 cm x 3.7 cm

Allgemein

Packungsmenge
2 (Spezifikationen gelten für einen Artikel)
Produkttyp
Relais-Controller
Funktionen
Leistungsmessung, Rollladensteuerung, Lichtsteuerung, Elektronik ein-/ausschalten
Stromquelle
Verdrahtet
Platzierung / Befestigung
In Wanddose montierbar
Anschlusstechnik
Kabellos - Bluetooth 4.2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Max. Reichweite in geschlossenen Räumen
30 m
Max. Reichweite (außen)
50 m
Frequenzband
2412 - 2472 MHz
Merkmale
Leistungsüberwachung, Scripting-Unterstützung, Überhitzungsschutz, Überspannungsschutz, Objekterkennung, 2 Kanäle, Fernzugriff, Zeitplanfunktion, bis zu 20 Zeitpläne MQTT-Unterstützung, HTTPS-Support, WebSockets-Support, UDP-Unterstützung, TLS-Verschlüsselung, Gateway-Modus, Überstromschutz, HTTP-Unterstützung, Matter-Kompatibilität

Internet der Dinge (IoT)

Internet der Dinge (IoT) kompatibel
Ja
Kompatible Anwendung
Samsung SmartThings
Plattform
Google Home
Intelligenter Assistent
Google Assistant, Alexa

Prozessor

CPU
ESP32 ESP-Shelly C38F
Hersteller
Espressif Systems

Flash-Speicher

Vorhandende Kapazität
8 MB

Verschiedenes

Produktmaterial
Kunststoff
Farbe
Schwarz
Erforderliche Netzspannung
AC 110-240/ DC 24 V
Nennstrom
16 A
Garantie
3 Jahre Garantie
Leistungsaufnahme im Betrieb
1.4 watt

Abmessungen und Gewicht

Breite
4.2 cm
Tiefe
1.6 cm
Höhe
3.7 cm
Gewicht
30 g

Umgebungsbedingungen

Min Betriebstemperatur
-20 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
30 - 70% RH
