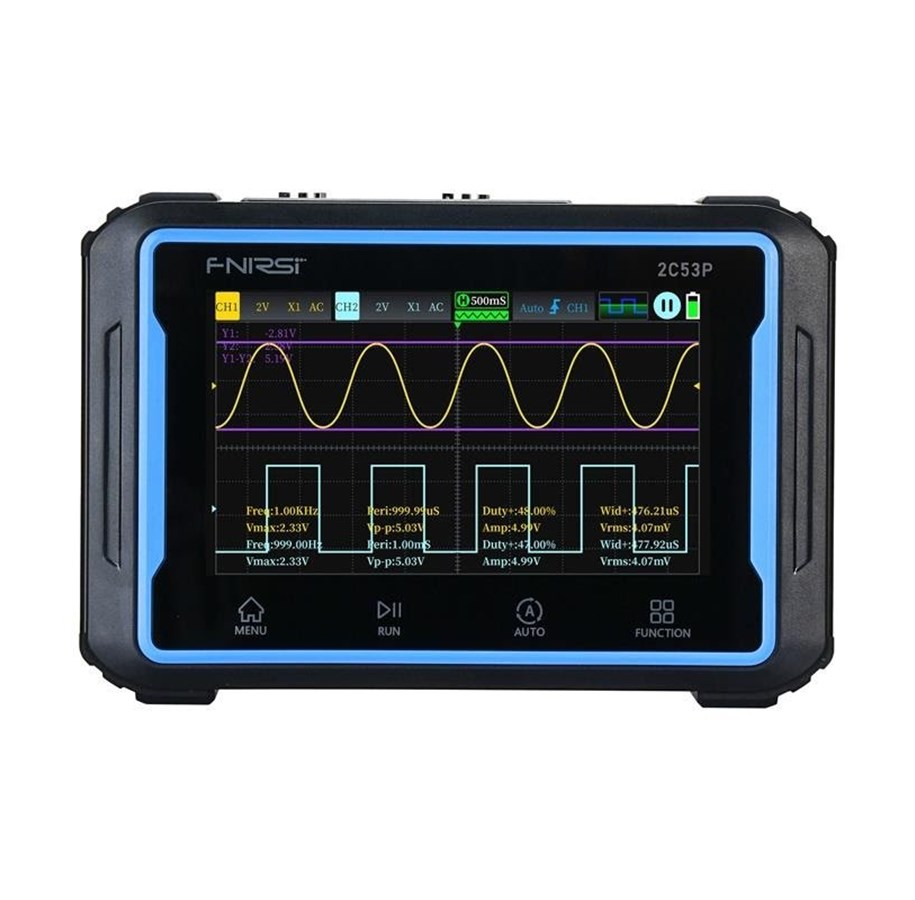

FNIRSI 2C53P Portable 3-in-1 4.3" Touchscreen Oscilloscope
The FNIRSI 2C53P is a portable 3-in-1 measurement device combining a dual-channel oscilloscope, digital multimeter and DDS signal generator in a compact handheld format. It features a 4.3-inch IPS touchscreen with 480×272 resolution for intuitive control and clear waveform display. The oscilloscope offers 50 MHz bandwidth and 250 MSa/s sampling for accurate signal analysis, while the multimeter supports high-precision 19999-count measurements across voltage, current, resistance, capacitance and temperature. A 4000 mAh battery enables portable operation, making it suitable for field, workshop and laboratory use.
112,01 €
93,34 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Bestellware. 7-9 Tage Lieferzeit
The FNIRSI 2C53P is a compact 3-in-1 diagnostic instrument integrating an oscilloscope, multimeter and signal generator for professional and technical applications. The oscilloscope provides 50 MHz bandwidth and 250 MSa/s sampling with dual-channel input, enabling detailed waveform analysis of both stable and transient electronic signals. Built-in measurement tools such as FFT analysis, X-Y mode, cursor measurements and automatic scaling functions enhance diagnostic accuracy and simplify signal interpretation in complex circuits. The integrated multimeter delivers 19999-count precision measurements covering AC/DC voltage and current, resistance, capacitance, diode testing, continuity and temperature measurement, with data logging and min/max tracking functions for deeper analysis. A 4.3-inch IPS touchscreen ensures clear visualization and intuitive navigation, while USB connectivity enables data export for external processing. The 4000 mAh rechargeable battery provides extended operating time, making the device suitable for field service, laboratory testing and educational environments where portability and versatility are essential.
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
