Waren-Nr.: 2749888

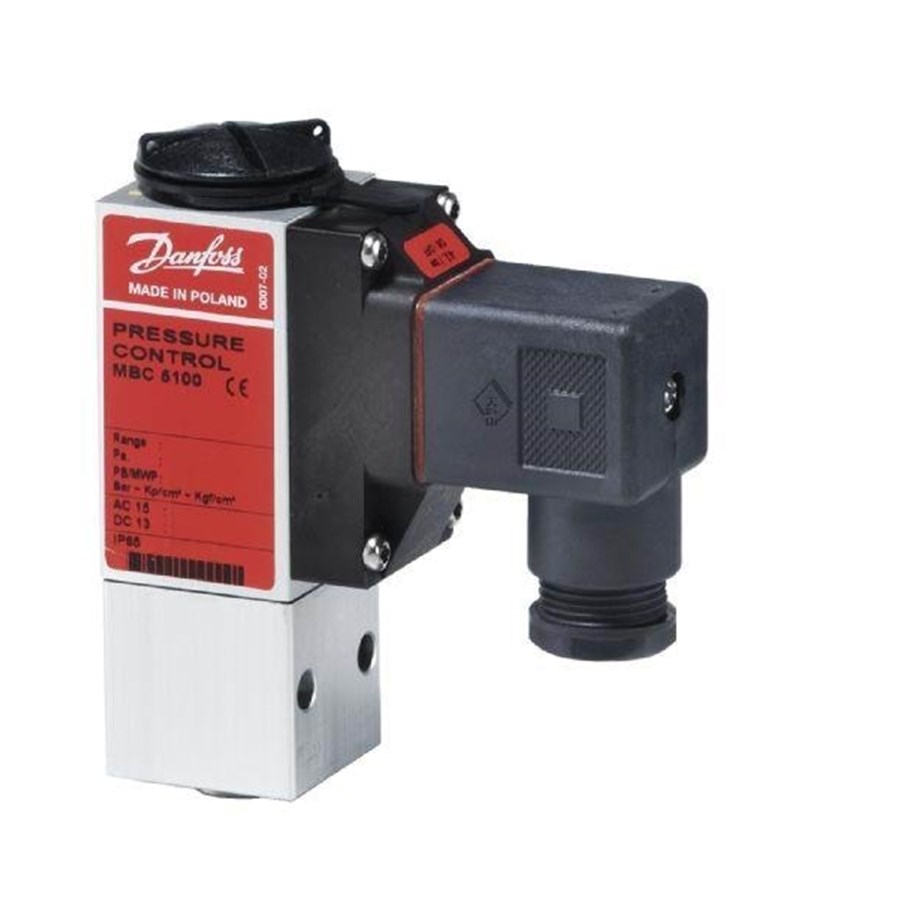

Danfoss Mbc 5100 block-type compact pressure switches

MBC pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches. •All relevant marine approvals •Pressure ranges: -0.2 to 400 bar •Low differential (fixed) micro switch •Resistant to shock and vibrations •Enclosure IP65 •Diaphragm version for applications with pulsations/pressure peaks •Compact design •Low installations costs •Fast and easy to operate •Easy to mount on block test valve •Available as differential pressure switch

Lesen Sie mehr
212,29 € 176,91 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 3-5 Werktage Lieferzeit

MBC 5100 Pressure Switch 5-40 bar Product Description: MBC 5100, Compact block pressure switches with marine approvals. MBC pressure switches are designed for demanding applications in the marine and general industry. MBC is a compact series developed for high pressures and pulsating media in tough environments such as maritime and engine installations. MBC has high vibration stability and all important marine approvals. Low differential and high repeatability accuracy. A series of test valves are available for the compact series of pressure switches.• Available with marine approvals• Pressure range: -0.2 to 100 bar• Low differential (fixed) micro switch• Resistant to shock and vibrations• Enclosure IP65• Diaphragm version for applications with pulsations/pressure surges • Compact design • Low installation costs • Quick and easy to operate • Easy to mount directly on test valve • Available as differential pressure switch Technical Specifications: Approvals: ABS, BV, CCC, CCS, CE, DNV, EAC,GL,KRS,Lloyd's Register,NKK,RINA,RMRS Ambient temperature (°C): -10 -85 °C Regulating range (bar) Pe: 5.00-40 .00 bar Weight (kg): 0 .308

Hersteller
Waren-Nr.
2749888
Modell
061B100566
EAN
5702423218646
