Waren-Nr.: 3139505

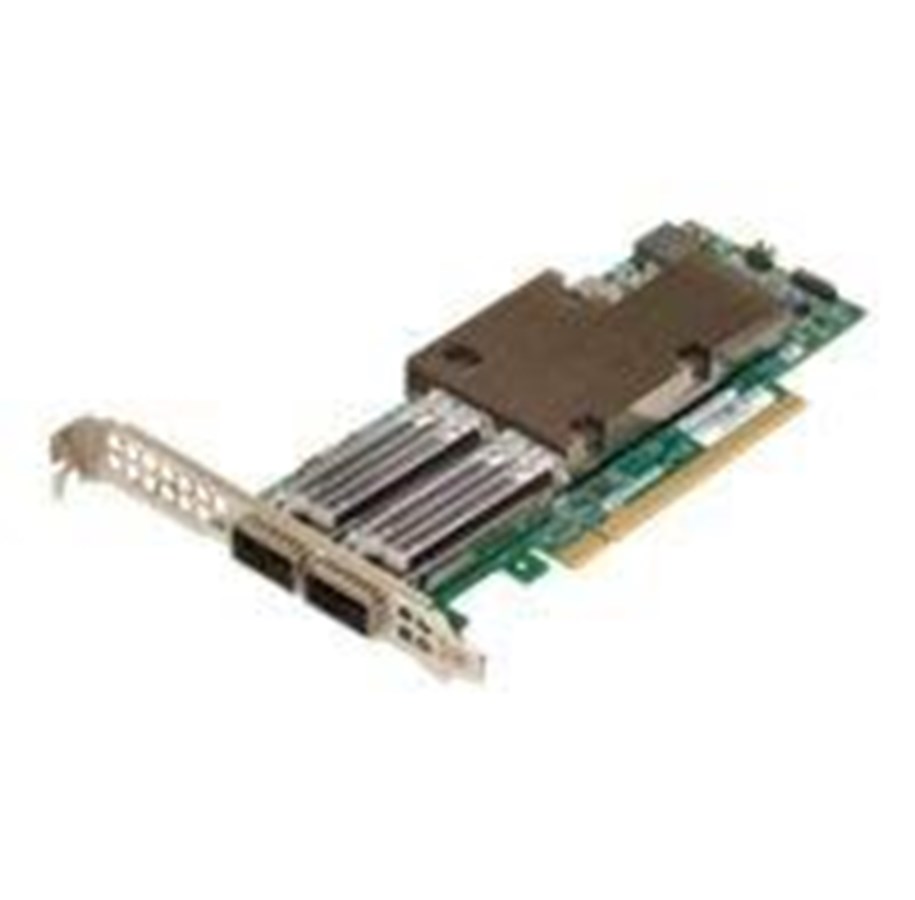

Foundry Networks Broadcom NetXtreme E-Series P2100G

Netzwerkadapter, PCIe 4.0 x16 Low-Profile, 100 Gigabit QSFP56 x 2

555,84 € 463,20 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme-E Series P2100G 2x100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.The P2100G 2x100G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.Driven by the growing need for higher server bandwidth and storage capacity to support emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

Hersteller
Waren-Nr.
3139505
Modell
BCM957508-P2100G
EAN
0650861000291
Zum Hersteller:
Produktbeschreibung
Broadcom NetXtreme E-Series P2100G - Netzwerkadapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 2
Gerätetyp
Netzwerkadapter
Formfaktor
Plug-in-Karte - Low-Profile
Schnittstellentyp (Bustyp)
PCI Express 4.0 x16
PCI-Spezifikationsrevision
PCIe 4.0
Ports
100 Gigabit QSFP56 x 2
Gewicht
167 g
Data Link Protocol
100GbE
Prozessor
Broadcom BCM57508

Allgemein

Gerätetyp
Netzwerkadapter
Formfaktor
Plug-in-Karte - Low-Profile
Schnittstellentyp (Bustyp)
PCI Express 4.0 x16
PCI-Spezifikationsrevision
PCIe 4.0

Netzwerk

Ports
100 Gigabit QSFP56 x 2
Anschlusstechnik
Kabelgebunden
Data Link Protocol
100 Gigabit Ethernet
Statusanzeiger
Link/Aktivität
Leistungsmerkmale
DCBX-Unterstützung, PXE-Unterstützung, LSO, LRO, RSS, UEFI-Support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI-Boot, TCP-/IP-Prüfsummen-Offload, UDP-/IP-Prüfsummen-Offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frame-Unterstützung (bis zu 9000 Bytes), NPAR, Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt Coalescing, ETS, QCN, Multi-Host-Technologie, vSwitch Acceleration, Tunnel-bewusste zustandslose Offloads, SMBus 2.0, NetQueue

Prozessor / Arbeitsspeicher

Prozessor
Broadcom BCM57508

Erweiterung/Konnektivität

Schnittstellen
2 x 100Gb Ethernet - QSFP56

Verschiedenes

Zubehör im Lieferumfang
Low profile Slotblech, Standardhalterung
Kennzeichnung
MSA SFF-8402

Stromversorgung

Leistungsaufnahme im Betrieb
19.3 Watt

Maße und Gewicht

Gewicht
167 g

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
