Waren-Nr.: 3176268

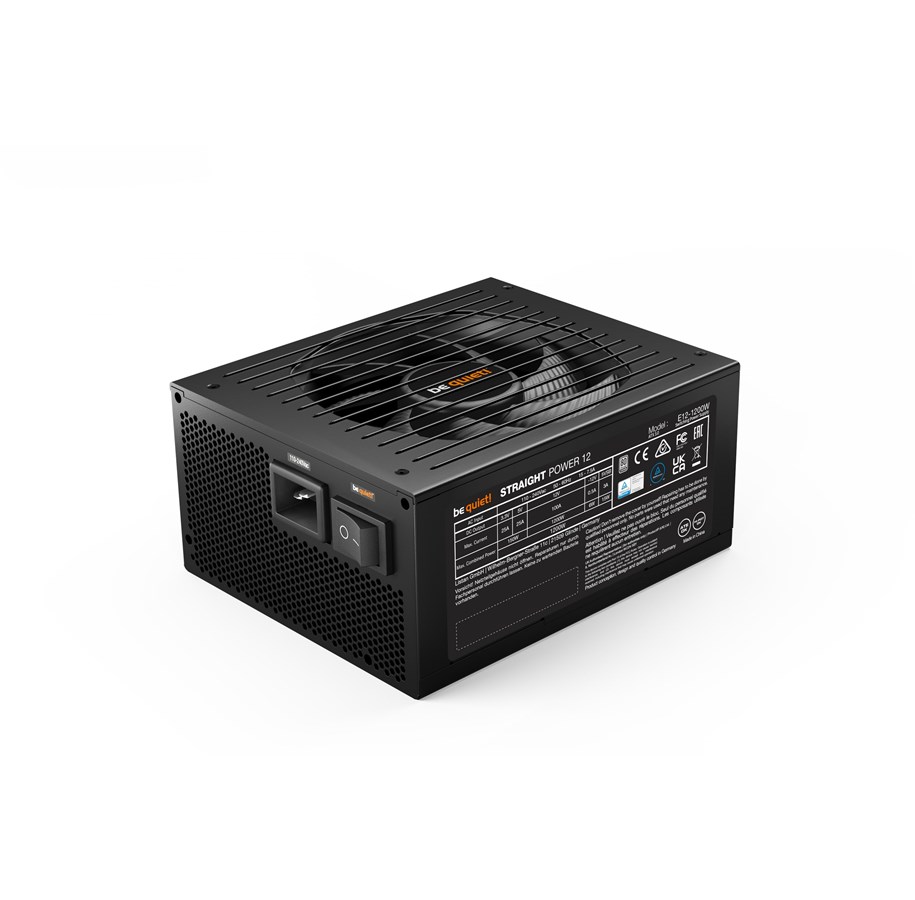

be quiet! Straight Power 12 Platinum 1200W Netzteile - 1200 Watt - 135 mm - ATX 3.1 - 80 Plus Platinium

Netzteile ( intern ), ATX standard: ATX12V 3.0, 80 plus Platinum, 135mm kühler , aktive PFC, Kabel: 4 x 8 (6+2) pins zu Grafikkarte / 2 x 12VHPWR pins zu Grafikkarte (PCI Express 5.0 ready) / 6 x 5 pins SATA / 1 x 24 (20+4) pins ATX, voll modular und gesleevt Kabel, Kabel, farbe: schwarz, 1200 watt

Auf Lager
237,14 € 197,62 € exkl. MwSt.
Günstigste Versandoption 6,99 €
2 Stk. Auf Lager. 2-4 Werktage Lieferzeit

Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.

80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1200W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1200W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.

FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1200W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1200W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1200W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

Stromkabel (Intern)

Hersteller
Waren-Nr.
3176268
Modell
BN339
EAN
4260052189443
Zum Hersteller:
Produktbeschreibung
be quiet! Straight Power 12 - Netzteil - 1200 watt
Gerätetyp
Netzteil - aktive Power Factor Correction (PFC) - intern
Spezifikationseinhaltung
ATX12V 3.0/ EPS12V 2.92
80-PLUS-Zertifizierung
80 PLUS Platinum
Gewicht
2.04 kg
Lokalisierung
Europa
Eingangsspannung
Wechselstrom 110-240 V
Ausgangsspannung
+3.3, +5, ±12 V
Leistungskapazität
1200 watt
Ausgangsstrom
+3.3V - 25 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
Ausgabeanschlussstellen
1 x Strom 24-poliges ATX mit abnehmbarer 4-poliger Sektion
1 x Strom 8-polig + 12V mit abnehmbarer 4-poliger Sektion
1 x Strom 8-poliges EPS12V
2 x 12VHPWR
4 x 8-poliger PCI Express Power mit abnehmbarer 2-poliger Sektion
9 x 15-Pin-SATA-Stromstecker
2 x Parallel ATA
Modulare Kabelverwaltung
Ja
Kühlsystem
135-mm-Lüfter
Zubehör im Lieferumfang
Kabelbinder, Schrauben
Farbe
Schwarz
Abmessungen (Breite x Tiefe x Höhe)
15 cm x 18 cm x 8.6 cm
Umweltschutzstandards
ENERGY STAR

Allgemein

Gerätetyp
Netzteil - aktive Power Factor Correction (PFC) - intern
Spezifikationseinhaltung
ATX12V 3.0/ EPS12V 2.92
Netzteil-Formfaktor
ATX
Farbe
Schwarz
Lokalisierung
Europa

Stromversorgungsgerät

Eingangsspannung
Wechselstrom 110-240 V
Nötige Frequenz
50 - 60 Hz
Angaben zu Ausgangsleistungsanschlüssen
1 x Strom 24-poliges ATX mit abnehmbarer 4-poliger Sektion
1 x Strom 8-polig + 12V mit abnehmbarer 4-poliger Sektion
1 x Strom 8-poliges EPS12V
2 x 12VHPWR
4 x 8-poliger PCI Express Power mit abnehmbarer 2-poliger Sektion
9 x 15-Pin-SATA-Stromstecker
2 x Parallel ATA
Ausgangsspannung
+3.3, +5, ±12 V
Leistungskapazität
1200 watt
Ausgangsstrom
+3.3V - 25 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
Effizienz
65% at 2% Load (230 VAC), 89% at 10% Load (230 VAC), 93.1% at 20% Load (230 VAC), 93.7% at 50% Load (230 VAC), 92.4% at 100% Load (230 VAC)
Leistungsfaktor (LF)
0.99
Modulare Kabelverwaltung
Ja
80-PLUS-Zertifizierung
80 PLUS Platinum

Verschiedenes

Zubehör im Lieferumfang
Kabelbinder, Schrauben
MTBF
100,000 Stunden
Kühlsystem
135-mm-Lüfter
Besonderheiten
Lüfter mit dynamischem Fluid-Lager, High Quality Capacitor
Kennzeichnung
Triman, RoHS, WEEE, BSMI, CB, cTUVus, FCC, RCM, TUV, UKCA

Informationen zur Nachhaltigkeit

ENERGY STAR
Ja

Umgebungsbedingungen

Max. Betriebstemperatur
40 °C

Abmessungen und Gewicht

Breite
15 cm
Tiefe
18 cm
Höhe
8.6 cm
Gewicht
2.04 kg

Abmessungen & Gewicht (Transport)

Transportbreite
24.8 cm
Transporttiefe
32.8 cm
Transporthöhe
10.2 cm
Transportgewicht
3.89 kg
