Waren-Nr.: 2874587

Thermaltake Smart BM2 650W - TT Premium Edition Netzteile - 650 Watt - ATX - 80 Plus Bronze zertifiziert

Thermaltake Smart BM2 Netzteil 650 W 20+4 pin ATX ATX Schwarz

71,63 € 59,69 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Bestellware. 11-13 Tage Lieferzeit

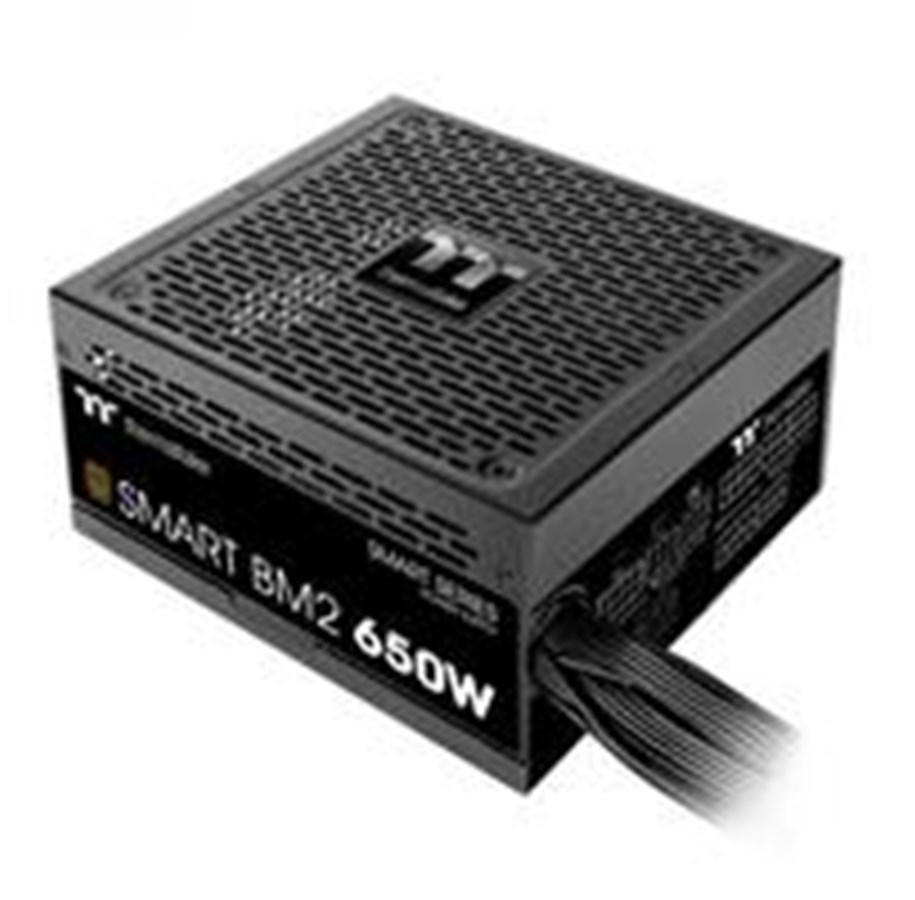

Smart BM2 650W - TT Premium Edition
Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 750W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance.

Ultra Quiet 140mm Rifle Bearing Fan
The Smart BM2 650W adopts s 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

Semi Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Smart BM2 650W to have highest stability and reliability.

DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BM2 650W saves energy through its high energy efficiency up to 85%. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

Stromkabel (Intern)

Hersteller
Waren-Nr.
2874587
Modell
PS-SPD-0650MNFABE-1
EAN
4713227525510
Zum Hersteller:
Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
47 - 63 Hz
Eingangsstrom
10 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
110 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
110 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
12,5 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
2,5 A
Haltezeit
12 ms
Energieschutzeigenschaften
Überstrom, Überspannung
Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
1
Stromkabellänge Motherboard
60 cm
Anzahl SATA Stromstecker
3
SATA-Netzkabellänge
150,500 mm
Periphere (Molex) Netzkabellänge
150,500 mm
Anzahl PCI Express Stromstecker 6+2pin
2
PCI Express Netzkabellänge
50 cm
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
60 cm
Floppy-Laufwerk Stromverbindung
1
Kabellänge des Diskettenlaufwerks
15 cm
Kabeltyp
Semi-Modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Bronze
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
14 cm
Anzahl Lüfter
1 Lüfter
Gebläsegeschwindigkeit
0 - 2300 RPM
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 70 °C
Relative Luftfeuchtigkeit in Betrieb
20 - 90%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Mitgelieferte Kabel
AC, CPU, PCIe, Peripheral (Molex), SATA
Zertifizierung
CE, FCC, TUV, cTUVus, EAC, BSMI, C-TICK, CCC, S-mark
Breite
150 mm
Tiefe
160 mm
Höhe
86 mm

Energie

Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
47 - 63 Hz
Eingangsstrom
10 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
110 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
110 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
12,5 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
2,5 A
Haltezeit
12 ms
Energieschutzeigenschaften
Überstrom, Überspannung

Anschlüsse und Schnittstellen

Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
1
Stromkabellänge Motherboard
60 cm
Anzahl SATA Stromstecker
3
SATA-Netzkabellänge
150,500 mm
Periphere (Molex) Netzkabellänge
150,500 mm
Anzahl PCI Express Stromstecker 6+2pin
2
PCI Express Netzkabellänge
50 cm
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
60 cm
Floppy-Laufwerk Stromverbindung
1
Kabellänge des Diskettenlaufwerks
15 cm
Kabeltyp
Semi-Modular

Leistungen

Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Bronze
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h

Design

Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
14 cm
Anzahl Lüfter
1 Lüfter
Gebläsegeschwindigkeit
0 - 2300 RPM
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 70 °C
Relative Luftfeuchtigkeit in Betrieb
20 - 90%
Luftfeuchtigkeit bei Lagerung
5 - 95%

Lieferumfang

Mitgelieferte Kabel
AC, CPU, PCIe, Peripheral (Molex), SATA

Zertifikate

Zertifizierung
CE, FCC, TUV, cTUVus, EAC, BSMI, C-TICK, CCC, S-mark

Gewicht und Abmessungen

Breite
150 mm
Tiefe
160 mm
Höhe
86 mm
