Waren-Nr.: 3369522

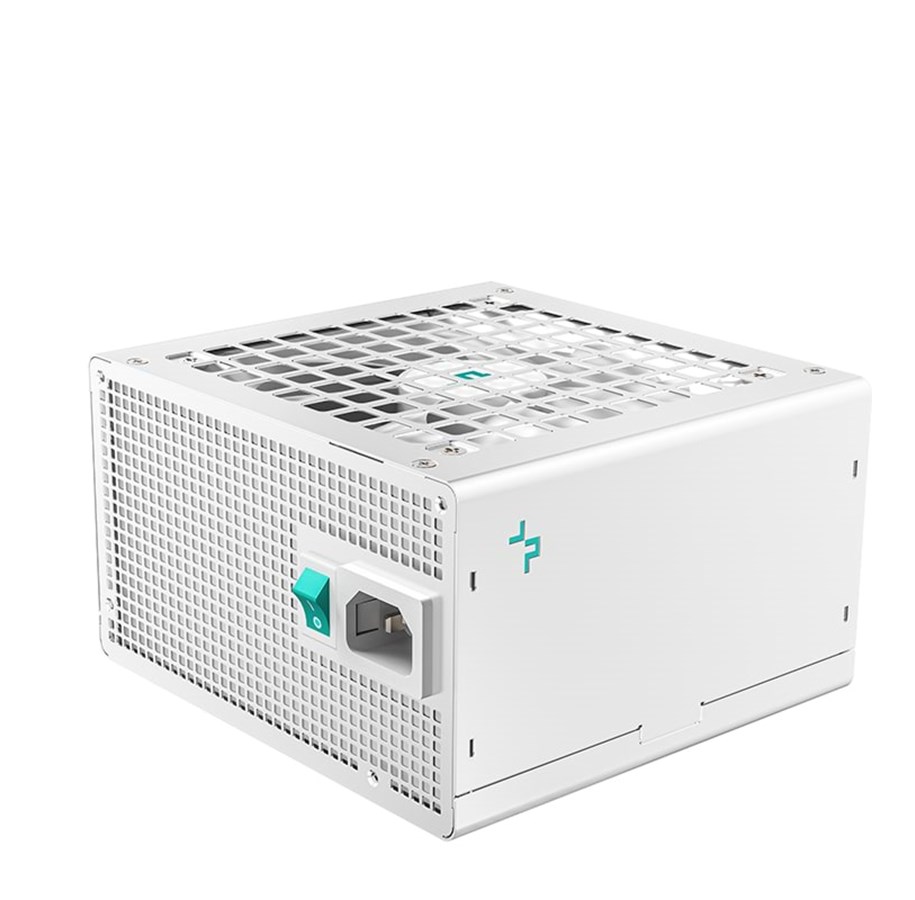

DeepCool PL650-D White Netzteile - 650 Watt - 120 mm - ATX 3.1 - 80 Plus Bronze zertifiziert

Netzteile ( intern ), ATX standard: ATX12V 3.1, 80 plus Bronze, 120mm kühler fluid dynamic lager, Kabel: 1 x 8 (6+2) pins zu Grafikkarte / 1 x 12V-2x6 pins zu Grafikkarte (PCI Express 5.1 ready) / 1 x 5 pins SATA / 1 x 24 (20+4) pins ATX / 1 x 4+4 pins CPU, farbe: weiß, 650 watt

63,34 € 52,78 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 4-6 Werktage Lieferzeit

The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

PL650D
Native ATX3.0 Power Supply

NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.

PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.

Stromkabel (Intern)

Hersteller
Waren-Nr.
3369522
Modell
R-PL650D-FC0W-EU-V2
EAN
6933412721246
Zum Hersteller:
Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
9 - 4.5 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
100 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
100 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
85%
Power Good Signal Verzögerungsbereich
100 - 150 ms
Energieschutzeigenschaften
No load operation, Überstrom, Überlastung, Überspannung, Überhitzung, Surge & inrush protection (SIP), Überspannungsschutz, Unterspannung
Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
2
Stromkabellänge Motherboard
55 cm
Anzahl SATA Stromstecker
6
SATA-Netzkabellänge
550,450,650 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (16-polig)
1
CPU Stecker (4+4 pin)
Ja
ATX Stromstecker (20+4 pol.)
Ja
Kabeltyp
Nicht-modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Bronze
ATX-Version
3.0
Lagertyp
HYB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
12 cm
Anzahl Lüfter
1 Lüfter
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja
Betriebstemperatur
0 - 40 °C
Konformitätsbescheinigungen
RoHS, WEEE
Zertifizierung
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Breite
150 mm
Tiefe
140 mm
Höhe
86 mm
Verpackungsart
Box
Nachhaltigkeitszertifikate
ErP, Triman
Nachhaltigkeitskonformität
Ja
Ursprungsland
China

Energie

Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
9 - 4.5 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
100 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
100 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
85%
Power Good Signal Verzögerungsbereich
100 - 150 ms
Energieschutzeigenschaften
No load operation, Überstrom, Überlastung, Überspannung, Überhitzung, Surge & inrush protection (SIP), Überspannungsschutz, Unterspannung

Anschlüsse und Schnittstellen

Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
2
Stromkabellänge Motherboard
55 cm
Anzahl SATA Stromstecker
6
SATA-Netzkabellänge
550,450,650 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (16-polig)
1
CPU Stecker (4+4 pin)
Ja
ATX Stromstecker (20+4 pol.)
Ja
Kabeltyp
Nicht-modular

Leistungen

Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Bronze
ATX-Version
3.0
Lagertyp
HYB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h

Design

Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
12 cm
Anzahl Lüfter
1 Lüfter
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C

Zertifikate

Konformitätsbescheinigungen
RoHS, WEEE
Zertifizierung
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

Gewicht und Abmessungen

Breite
150 mm
Tiefe
140 mm
Höhe
86 mm

Verpackungsdaten

Verpackungsart
Box

Technische Details

Nachhaltigkeitszertifikate
ErP, Triman
Nachhaltigkeitskonformität
Ja

Logistikdaten

Ursprungsland
China
