Waren-Nr.: 2844583
Akyga Zasilacz uniwersalny AK-NU-12 do notebooka (
Netzteil, Wechselstrom 110-240 V, 65 watt, Schwarz
14,96 €
12,47 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 7-9 Werktage Lieferzeit

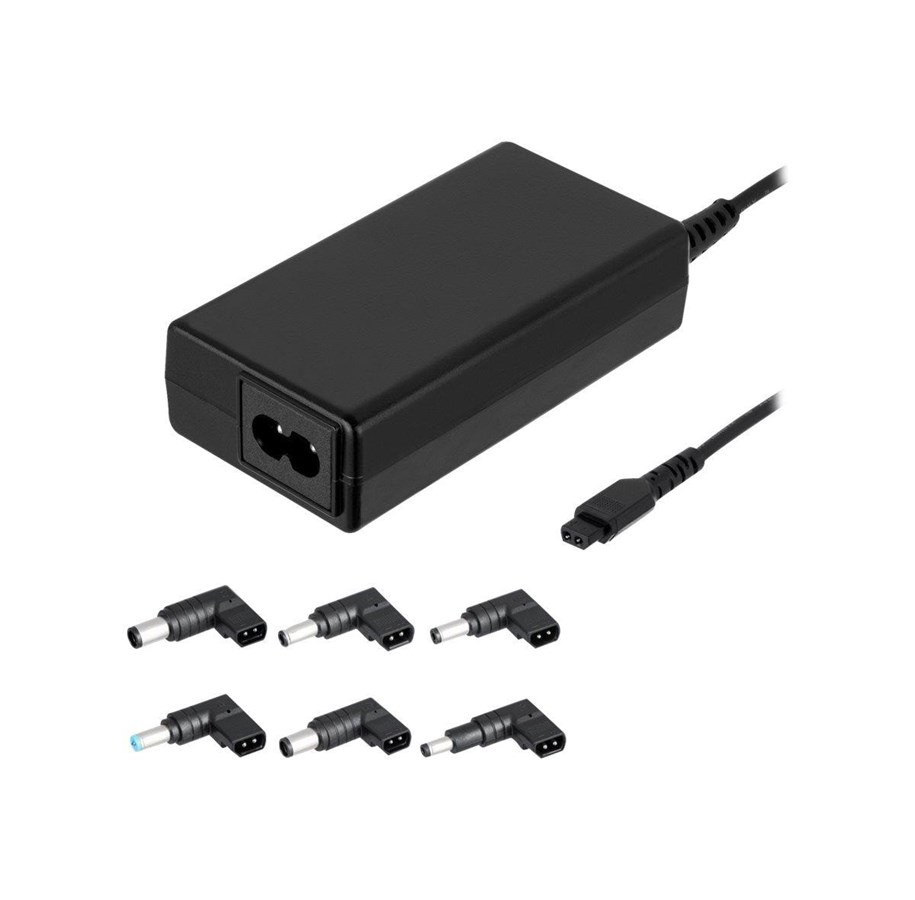

Akyga AK-NU-12 is a universal power supply for various types of notebooks powered in the range of 18.5V / 19V / 19.5V / 20V and maximum 65W, holding a set of 6 different interchangeable plugs. Plugs differ from each other in inner and outer dimensions and presence of the pin. This kind of solution is particularly recommended for people who want to supply various models of laptops of different brands, without buying and carrying many different power supplies. If needed, to match the power supply to a completely different range of products, all you have to do is only change the plug.The output voltage is adjusted automatically after connecting the selected plug. The cord of the power adapter is equipped with a high-quality ferrite core that prevents and protects devices from any possible mode currents and high frequency noise. A set of protectors (OVP, OTP, OPP, SCP and OCP) guarantees fully secure, stable work of both powered device and the power supply. Additional safety for the equipment is provided by the soft start technology, which neutralizes the shock of the first stroke of current during the device startup.
Hersteller
Waren-Nr.
2844583
Modell
AK-NU-12
EAN
5901720134905
Zum Hersteller:
Produktbeschreibung
Akyga Universal Series AK-NU-12 - Netzteil - 65 watt
Gerätetyp
Netzteil - extern
Gewicht
322.5 g
Eingangsspannung
Wechselstrom 110-240 V
Ausgangsspannung
18.5 / 19 / 19.5 / 20 V
Leistungskapazität
65 watt
Eingangsanschlüsse
1 x Strom IEC 60320 C8
Ausgabeanschlussstellen
1 x Gleichstromstecker 7,4 mm (ID: 5 mm)
1 x Gleichstromstecker 5,5 mm (ID: 3,0 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 2,5 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 1,7 mm)
1 x Gleichstromstecker 7,4 mm (ID: 5 mm) - 19.5 V
1 x Gleichstromstecker 4,8 mm (ID: 1,7 mm)
1 x Gleichstromstecker 5,5 mm (ID: 3,0 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 2,5 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 1,7 mm)
1 x Gleichstromstecker 7,4 mm (ID: 5 mm) - 19.5 V
1 x Gleichstromstecker 4,8 mm (ID: 1,7 mm)
Zubehör im Lieferumfang
6 Notebook-Ausgangsstecker
Farbe
Schwarz
Abmessungen (Breite x Tiefe x Höhe)
4.9 cm x 9.5 cm x 2.7 cm
Allgemein
Gerätetyp
Netzteil - extern
Farbe
Schwarz
Stromversorgungsgerät
Eingangsspannung
Wechselstrom 110-240 V
Nötige Frequenz
50/60 Hz
Eingangsanschlüsse
1 x Strom IEC 60320 C8
Angaben zu Ausgangsleistungsanschlüssen
1 x Gleichstromstecker 7,4 mm (ID: 5 mm)
1 x Gleichstromstecker 5,5 mm (ID: 3,0 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 2,5 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 1,7 mm)
1 x Gleichstromstecker 7,4 mm (ID: 5 mm) - 19.5 V
1 x Gleichstromstecker 4,8 mm (ID: 1,7 mm)
1 x Gleichstromstecker 5,5 mm (ID: 3,0 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 2,5 mm) - 19 V
1 x Gleichstromstecker 5,5 mm (ID: 1,7 mm)
1 x Gleichstromstecker 7,4 mm (ID: 5 mm) - 19.5 V
1 x Gleichstromstecker 4,8 mm (ID: 1,7 mm)
Ausgangsspannung
18.5 / 19 / 19.5 / 20 V
Elektrischer Strom max.
3.5 A
Leistungskapazität
65 watt
Effizienz
80%+
Verschiedenes
Zubehör im Lieferumfang
6 Notebook-Ausgangsstecker
Enthaltene Kabel
Stromkabel - integriert - 1.5 m
MTBF
100,000 Stunden
Besonderheiten
EcoBox-Paket, Überspannungsschutz, Überhitzungsschutz, Over Power Protection, Kurzschlussschutz, Überstromschutz, Soft Start Technology (SST), Automatische Spannungsregelung (Automatic Voltage Regulation, AVR)
Kennzeichnung
FCC, RoHS, REACH
Umgebungsbedingungen
Min Betriebstemperatur
5 °C
Max. Betriebstemperatur
50 °C
Abmessungen und Gewicht
Breite
4.9 cm
Tiefe
9.5 cm
Höhe
2.7 cm
Gewicht
322.5 g
Abmessungen & Gewicht (Transport)
Transportbreite
9.2 cm
Transporttiefe
19 cm
Transporthöhe
3.8 cm
Transportgewicht
371.5 g
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
