Waren-Nr.: 2816819

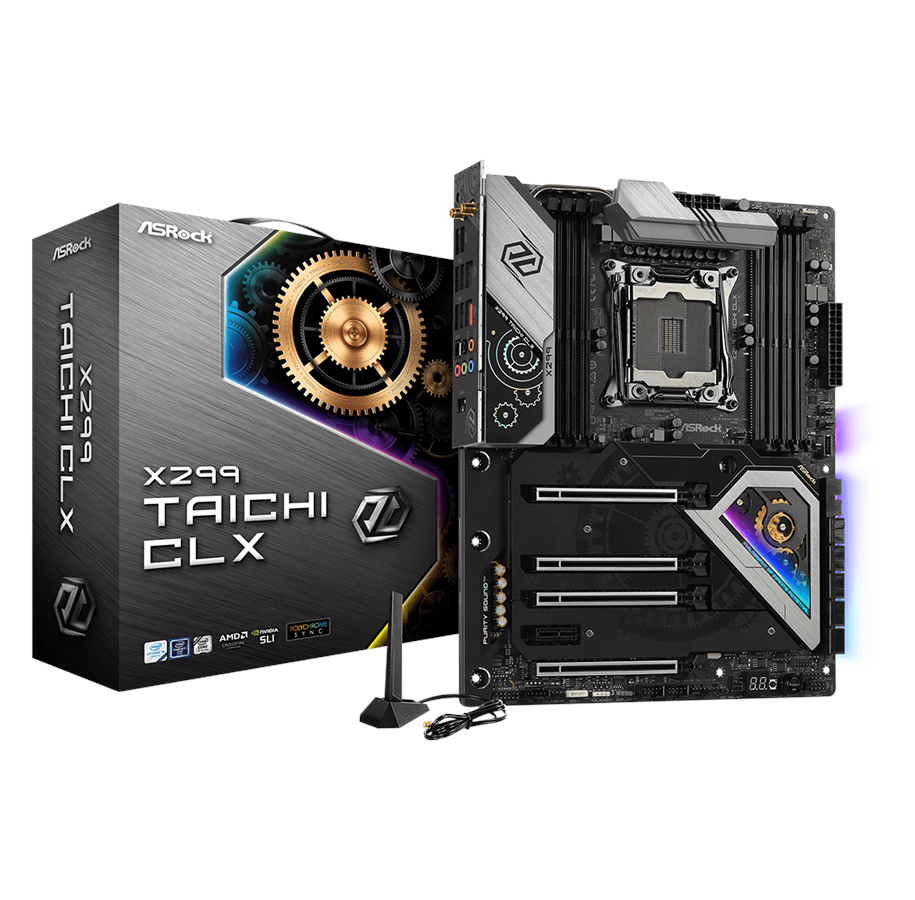

ASRock X299 Taichi CLX Mainboard - Intel X299 - Intel LGA2066 - DDR4 RAM - ATX

Mainboard, ATX, Intel LGA 2066 Socket, Intel X299, 4 x PCI-Express 3.0 x16, Quad DDR4-2666 - 8 x DIMM slots, 8 x SATA-600 / 3 x M.2 NVMe PCI-Express 3.0 (2242 / 2260 / 2280), USB 3.2 Gen 2x2 Type C & USB 3.2 Gen 1 Type A & USB 2.0 Type A Verbindung, 1x Intel I219V Gigabyte Lan & 1x Realtek 2.5 Gigabyte LAN, Intel WiFi (802.11ax) & Bluetooth 5.0, Realtek ALC1220 HD Audio (8-Kanäle) - ASRock Polychrome Sync

252,42 € 210,35 € exkl. MwSt.

Dieses Bundle enthält

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Wert 39,99 € Gültig ab 07-10-2024 00:00 - solange der Vorrat reicht
Günstigste Versandoption 6,99 €
Bestellware. 5-7 Tage Lieferzeit

Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable. The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming. Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie three gaming required M.2 key M sockets. ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Hersteller
Waren-Nr.
2816819
Modell
90-MXBBH0-A0UAYZ
EAN
4717677339765
Produktbeschreibung
ASRock X299 Taichi CLX - Motherboard - ATX - LGA2066 Socket - X299
Produkttyp
Motherboard - ATX
Chipsatz
Intel X299
Prozessorsockel
1 x LGA2066 Socket
Kompatible Prozessoren
Core X
Unterstütztes RAM
8 DIMM-Steckplätze - DDR4, non-ECC, ungepuffert
Massenspeicher-Schnittstellen
10 x SATA-600 (RAID), 3 x Ultra M.2
USB-/FireWire-Anschlüsse
1 x USB-C Gen 2x2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.0 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste)
Audio
HD Audio (8-Kanal)
LAN
Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax

Allgemein

Produkttyp
Motherboard - ATX
Chipsatz
Intel X299
Prozessorsockel
LGA2066 Socket
Max. Anz. Prozessoren
1
Kompatible Prozessoren
Core X

Unterstützter RAM

Max. Größe
256 GB
Bustakt
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.)
Unterstützte RAM-Integritätsprüfung
Non-ECC
Registriert oder gepuffert
Ungepuffert
Besonderheiten
Vier-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) 2.0

Audio

Typ
HD Audio (8-Kanal)
Audio Codec
Realtek ALC1220
Kompatibilität
DTS Connect, High-Definition-Audio, Premium Blu-ray-Audiounterstützung, Purity Sound 4

LAN

Netzwerkcontroller
Intel I219V / Dragon RTL8125AG
Netzwerkschnittstellen
Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax

Erweiterung/Konnektivität

Erweiterungssteckplätze
1 x CPU
8 x DIMM 288-polig
4 x PCIe 3.0 x16 (44-spuriger CPU (x16/x8/x16/x0, x8/x8/x16/x8 Modi), 28-spuriger CPU (x16/x0/x8/x0, x8/x0/x8/x8 Modi), 16-spuriger CPU (x16/x0/x0/x0, x8/x0/x4/x0 Modi))
1 x PCIe 3.0 x1
1 x M.2 socket
Speicherschnittstellen
SATA-600 -anschlussstellen: 8 x 7-Pin Serial ATA - 8 Geräte - RAID 0 / RAID 1 / RAID 10 / RAID 5
ASMedia ASM1061: SATA-600 -anschlussstellen: 2 x 7-Pin Serial ATA - 2 Geräte
PCIe 3.0 -anschlussstellen: 2 x Ultra M.2
SATA-600 / PCIe 3.0 -anschlussstellen: 1 x Ultra M.2
RAID-Merkmale
Intel Smart Response Technology
Schnittstellen
USB-C Gen2x2
1 x TOSLINK
2 x USB 2.0
4 x USB 3.2 Gen 1
1 x LAN (Gigabit Ethernet)
1 x Audio Line-Out (hinten) - Mini-Klinkenstecker
1 x Audio Line-Out (Mitte/Subwoofer) - Mini-Klinkenstecker
1 x Audio Line-In - Mini-Klinkenstecker
1 x Audio Line-Out (Front-Surround) - Mini-Klinkenstecker
1 x Mikrofon - Mini-Klinkenstecker
1 x LAN (2.5Gigabit Ethernet)
Interne Schnittstellen
2 x USB 3.2 Gen 1 - Stiftleiste
4 x USB 2.0 - Stiftleiste
1 x Audio - Stiftleiste
1 x Thunderbolt - Stiftleiste
1 x USB-C Gen2 - Stiftleiste
Stromanschlüsse
Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse

Besonderheiten

BIOS-Typ
AMI
BIOS-Funktionen
Mehrsprachiges BIOS, UEFI BIOS, Dual BIOS, Secure Backup UEFI Technology, Unterstützung von SMBIOS 3,0, ACPI 6,1 Unterstützung
Manuelle Einstellungen
Prozessorkernspannung, Speicherspannung, Chipsatz-Spannung
Hardwareüberwachung
CPU-Kerntemperatur, Gehäusetemperatur, Drehzahlmesser für CPU-Lüfter, Drehzahlmesser Gehäuselüfter, Systemspannung, CPU-Core-Spannung
Sleep / Wake up
Wake-On-LAN (WOL)
Hardwarefeatures
ASRock Instant Flash, NVIDIA 3-way SLI Technology Support, Intel XMP-Unterstützung (Intel Extreme Memory Profile), AMD 3-Way CrossFireX-Technologiesupport, ASRock Internet Flash, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 8 Layer PCB, Transparente CMOS-Taste, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, 13 Phase Power Design, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, Intel VROC support, ASRock Hyper BCLK Engine III, Intel Turbo Boost Max Technology 3.0, ASRock Full Coverage M.2 Heatsink

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
