Waren-Nr.: 3424328

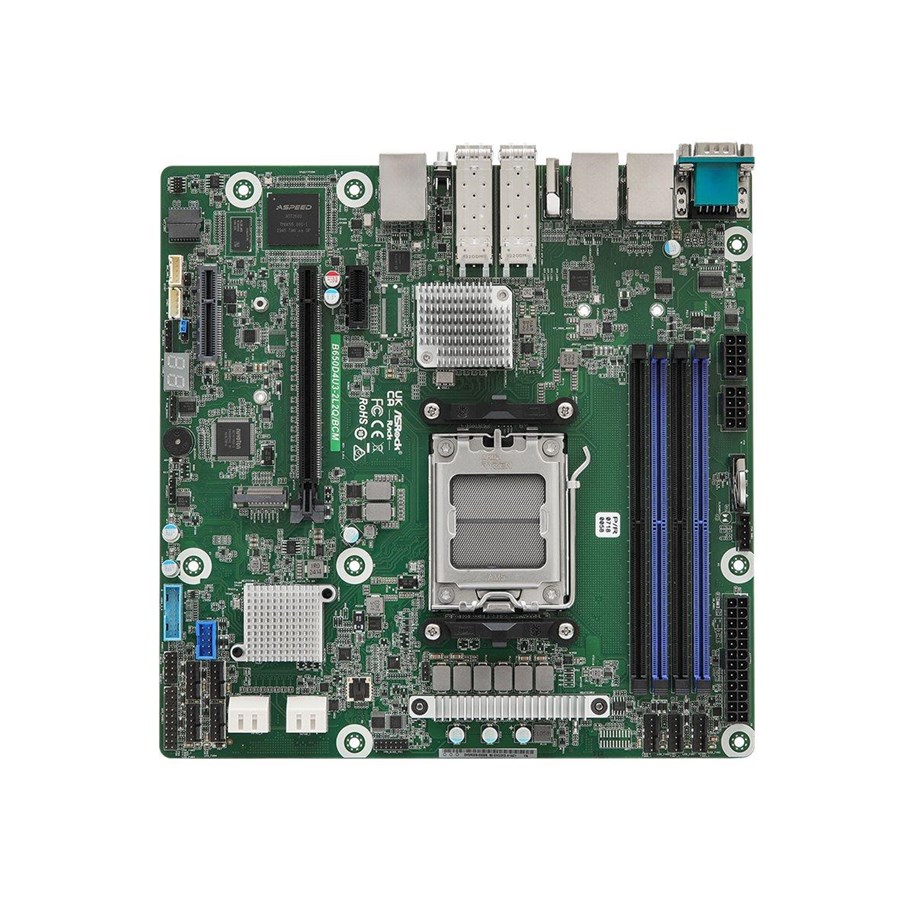

ASRock Rack B650D4U3-2L2Q/BCM - motherboard - micro ATX - Socket AM5 - AMD B650E Mainboard - AMD B650E - AMD AM5 - DDR5 RAM - Micro-ATX
Motherboard, micro ATX, Socket AM5, AMD B650E Chipsatz, USB 3.2 Gen 1, 2 x 25 Gigabit LAN, 2 x Gigabit LAN, Onboard-Grafik
596,02 €
496,68 € exkl. MwSt.
Dieses Bundle enthält
Günstigste Versandoption 6,99 €
Bestellware. 5-7 Tage Lieferzeit
The ASRock Rack B650D4U3-2L2Q/BCM motherboard is engineered for robust performance and reliability, making it a choice for server and workstation applications. Featuring a micro ATX form factor, it supports the powerful Ryzen 7000/8000/9000 Series processors, ensuring enhanced processing capabilities without sacrificing efficiency. With support for DDR5 SDRAM and RAM speeds up to 5600 MHz along with four DIMM slots, users can enjoy a boost in memory performance and multitasking capabilities.As for connectivity, the motherboard offers an extensive range of interfaces including multiple network protocols such as 25 Gigabit Ethernet and various expansion slots, making it versatile for various needs. The inclusion of four USB 3.2 Gen 1 ports provides fast data transfer options, while the HDMI and VGA outputs ensure visual display requirements are met. In terms of hardware monitoring, features like CPU core temperature monitoring and chassis intrusion detection enhance system reliability and security, making this motherboard a strong foundation for any computing setup.
Hersteller
Waren-Nr.
3424328
Modell
B650D4U3-2L2Q/BCM
EAN
4711430522968
Zum Hersteller:
Produktbeschreibung
ASRock Rack B650D4U3-2L2Q/BCM - Motherboard - micro ATX - Socket AM5 - AMD B650E
Produkttyp
Motherboard - micro ATX
Chipsatz
AMD B650E
Prozessorsockel
1 x Socket AM5
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000/8000/9000 Serie)
Max. RAM-Größe
192 GB
Unterstütztes RAM
4 DIMM-Steckplätze - DDR5, non-ECC, ECC, ungepuffert
Massenspeicher-Schnittstellen
4 x SATA-600, 1 x M.2
USB-/FireWire-Anschlüsse
4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 über eine interne Stiftleiste)
Grafik
ASPEED AST2600
LAN
2 x 25 Gigabit Ethernet, 2 x Gigabit Ethernet
Allgemein
Produkttyp
Motherboard - micro ATX
Chipsatz
AMD B650E
Prozessorsockel
Socket AM5
Max. Anz. Prozessoren
1
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000/8000/9000 Serie)
Unterstützter RAM
Max. Größe
192 GB
Technologie
DDR5
Bustakt
3600 MHz, 5600 MHz
Unterstützte RAM-Integritätsprüfung
Non-ECC, ECC
Registriert oder gepuffert
Ungepuffert
Grafik
Grafik-Controller
ASPEED AST2600
LAN
Netzwerkcontroller
Broadcom BCM57502 / Intel I210
Netzwerkschnittstellen
2 x 25 Gigabit Ethernet, 2 x Gigabit Ethernet
Erweiterung/Konnektivität
Erweiterungssteckplätze
1 x CPU
4 x DIMM 288-polig (1.1 V)
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
1 x M.2 socket (2242/2280 M.2 Key M Slot)
4 x DIMM 288-polig (1.1 V)
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
1 x M.2 socket (2242/2280 M.2 Key M Slot)
Speicherschnittstellen
SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA
PCIe 5.0 -anschlussstellen: 1 x M.2
PCIe 5.0 -anschlussstellen: 1 x M.2
Schnittstellen
1 x VGA
1 x HDMI
1 x Management
1 x Seriell
4 x USB 3.1 Gen 1
2 x LAN (Gigabit Ethernet)
2 x LAN (25Gigabit Ethernet) - SFP28
1 x HDMI
1 x Management
1 x Seriell
4 x USB 3.1 Gen 1
2 x LAN (Gigabit Ethernet)
2 x LAN (25Gigabit Ethernet) - SFP28
Interne Schnittstellen
2 x USB 3.2 Gen 1 - Stiftleiste
2 x USB 2.0 - Stiftleiste
1 x SPI - Stiftleiste
1 x VGA - Stiftleiste
1 x Lautsprecher - Stiftleiste
2 x USB 2.0 - Stiftleiste
1 x SPI - Stiftleiste
1 x VGA - Stiftleiste
1 x Lautsprecher - Stiftleiste
Stromanschlüsse
Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse
Besonderheiten
BIOS-Typ
AMI
BIOS-Funktionen
UEFI BIOS, ACPI 6.4 Unterstützung, SMBIOS 3.5 Unterstützung, IPMI-Unterstützung
Hardwareüberwachung
CPU-Kerntemperatur, Lüftersteuerung, Systemspannung
Hardwarefeatures
Chassis Intrusion Detection, Diagnose-LEDs
Verschiedenes
Kennzeichnung
Plug and Play
Breite
24.4 cm
Tiefe
24.4 cm
