Waren-Nr.: 2952145
Schneider Electric Zelio control relay for overcurrent detection 2..20a with current trafo 1c/o 5a 24-240vac/dc
Schneider Electric RM17JC00MW Nicht kategorisiert
92,70 €
77,25 € exkl. MwSt.
Günstigste Versandoption 5,99 €
Verfügbar - 4-6 Werktage Lieferzeit

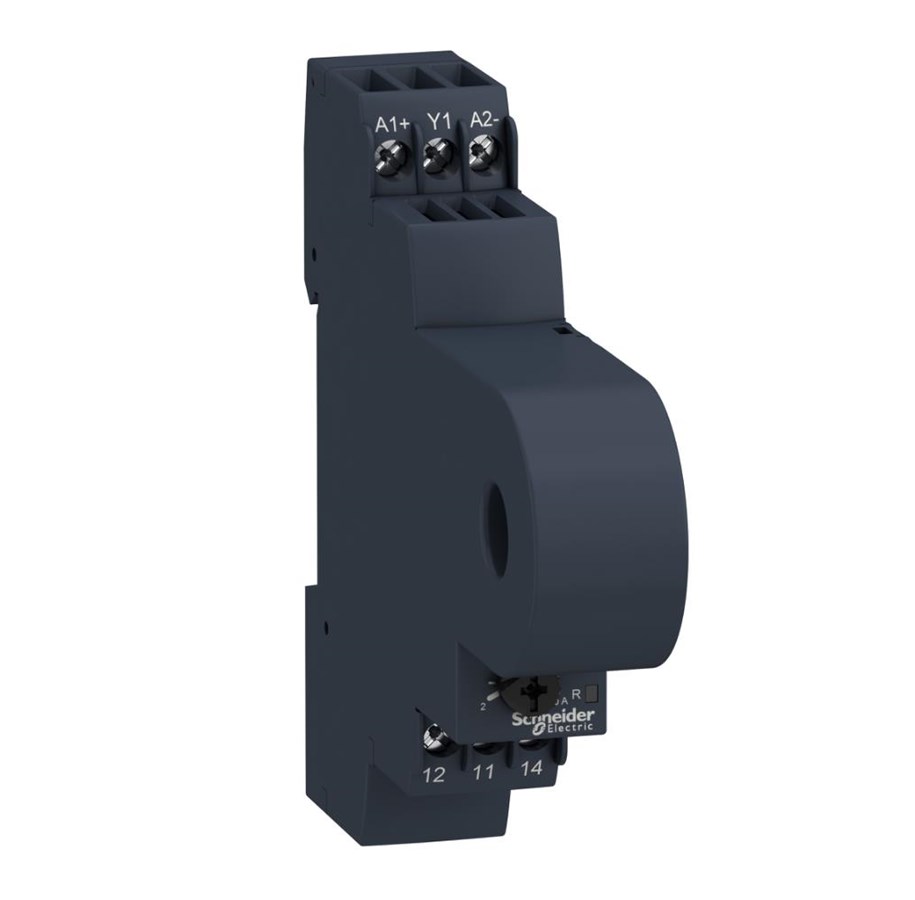

RM17 JC current control relay
Schneider Electric RM17 JC current control relay for controlling alternating currents in the event of overcurrent. Built-in current transformer with a wide measurement range. Monitors heating and lighting circuits and motor and generator load status.
Checks its own power supply
Clear hinged front cover
LED display of output status
DIN Rail mounting
Standards
NF EN 60255-6 and IEC 60255-6
Approvals
UL, CSA, GL, C-Tick, GOST
Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Current Monitoring Application - RM17JC00MW
This monitoring relay serves as a current sensing relay for effective overcurrent protection. It facilitates performance monitoring of current levels, enabling interventions to avert equipment failure and enhance operational safety.
Features & Benefits
- SPDT contact configuration offers flexible installation options
- Minimum current sensing capability of 2A ensures accuracy
- Maximum current sensing capacity of 20A meets diverse needs
- 0.5s time delay improves system robustness during faults
- Screw terminal type enables secure and straightforward connections
- Operates within a temperature range of -20В°C to +50В°C
Applications
- Continuous monitoring of electrical systems
- Suitable for industrial environments needing current regulation
- Applicable in automation and control
- Protects machinery from overcurrent surges
What is the installation process for this relay?
The relay is designed for easy installation onto a DIN rail, requiring only access to the appropriate voltage supply.
How does this device help prevent equipment failure?
By monitoring current levels in real-time, it triggers alerts or actions when overcurrent conditions occur, thus protecting connected equipment.
Is it compatible with different operating voltages?
Yes, it accepts a broad range of operating voltages from 20.4V to 264V AC/DC, providing versatility for various applications.
What maintenance is required to ensure optimal performance?
Regular checks of connections and functionality are recommended to maintain performance.
Schneider Electric RM17 JC current control relay for controlling alternating currents in the event of overcurrent. Built-in current transformer with a wide measurement range. Monitors heating and lighting circuits and motor and generator load status.
Checks its own power supply
Clear hinged front cover
LED display of output status
DIN Rail mounting
Standards
NF EN 60255-6 and IEC 60255-6
Approvals
UL, CSA, GL, C-Tick, GOST
Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Current Monitoring Application - RM17JC00MW
This monitoring relay serves as a current sensing relay for effective overcurrent protection. It facilitates performance monitoring of current levels, enabling interventions to avert equipment failure and enhance operational safety.
Features & Benefits
- SPDT contact configuration offers flexible installation options
- Minimum current sensing capability of 2A ensures accuracy
- Maximum current sensing capacity of 20A meets diverse needs
- 0.5s time delay improves system robustness during faults
- Screw terminal type enables secure and straightforward connections
- Operates within a temperature range of -20В°C to +50В°C
Applications
- Continuous monitoring of electrical systems
- Suitable for industrial environments needing current regulation
- Applicable in automation and control
- Protects machinery from overcurrent surges
What is the installation process for this relay?
The relay is designed for easy installation onto a DIN rail, requiring only access to the appropriate voltage supply.
How does this device help prevent equipment failure?
By monitoring current levels in real-time, it triggers alerts or actions when overcurrent conditions occur, thus protecting connected equipment.
Is it compatible with different operating voltages?
Yes, it accepts a broad range of operating voltages from 20.4V to 264V AC/DC, providing versatility for various applications.
What maintenance is required to ensure optimal performance?
Regular checks of connections and functionality are recommended to maintain performance.
Hersteller
Waren-Nr.
2952145
Modell
RM17JC00MW
EAN
3389119405034
