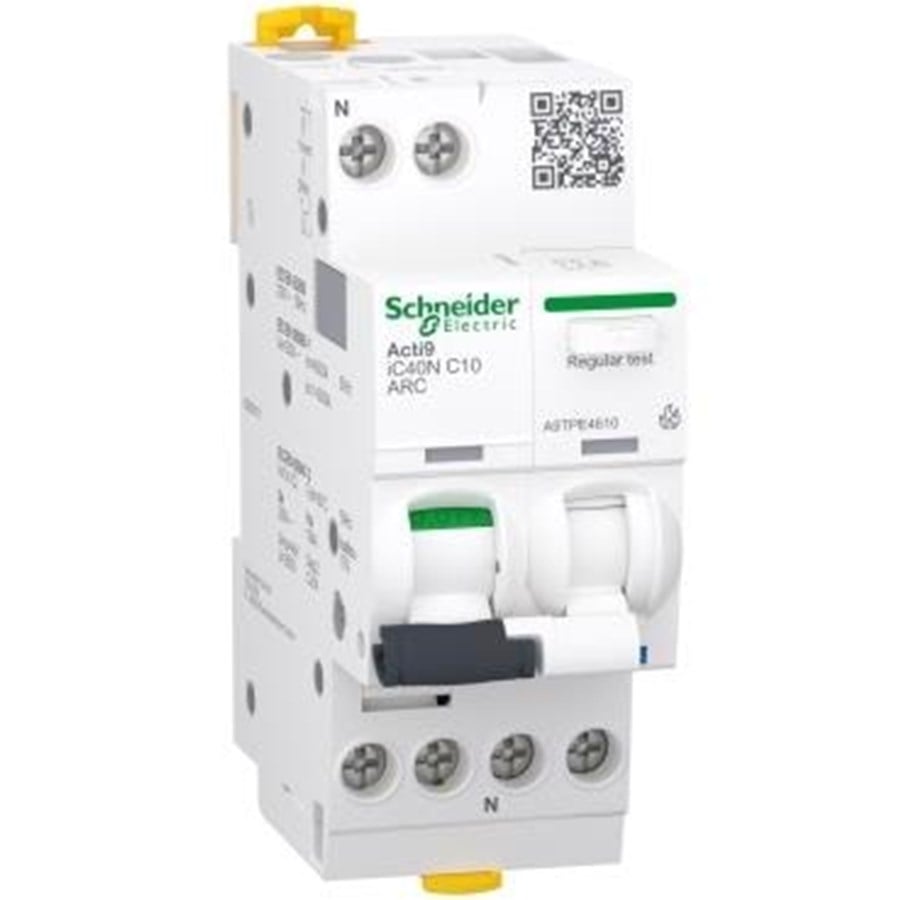

Schneider Electric Spark detector/arc monitor MCB+AFD 1PN C10A 6kA iC40N ARC

This Acti9 iC40 ARC product is an arc fault detection circuit breaker. It is a 1P+N with 1 protected pole, 10A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard and 10kA at 230VAC conforming to EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit, overload current and arc fault. Its fast closing mechanism independent of manual operation improves its service life. Its 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 250VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 2. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D)73mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. This product is compliant with EN/IEC 62606, EN/IEC 60898-1 and EN/IEC 60947-2 standard.
