Noratel [4562001637]

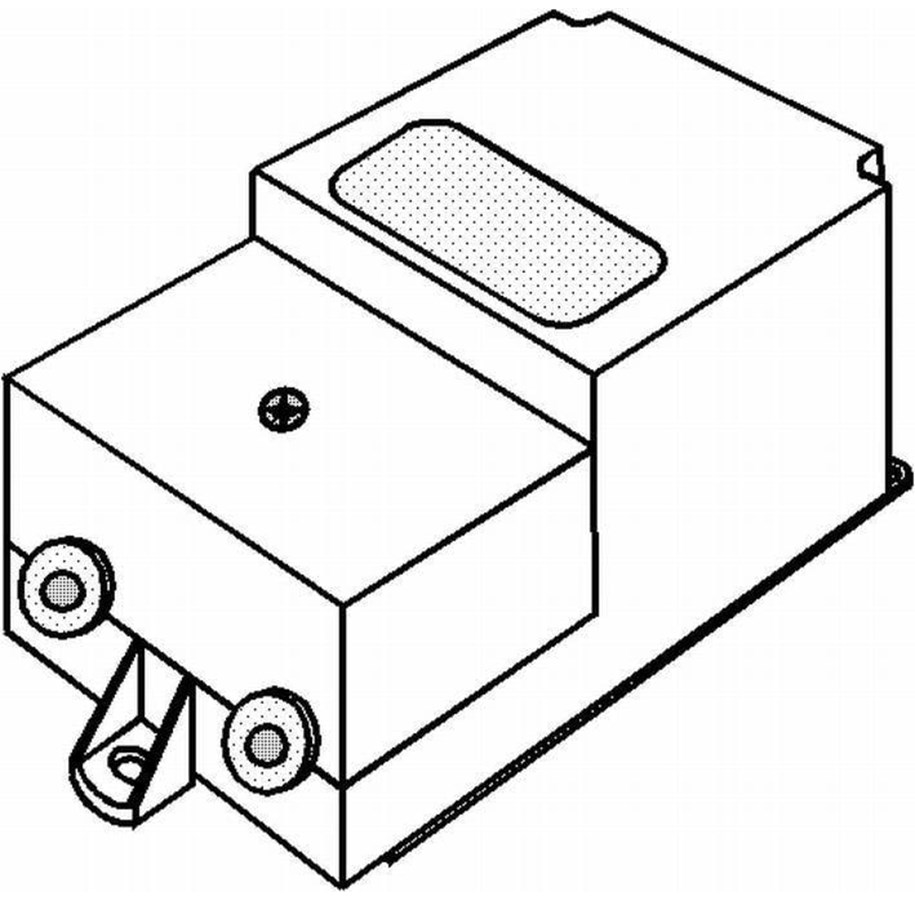

Transformer LF 66B -22024-GS 60VA Product description: Single-phase safety transformer with separate windings, designed and manufactured according to EN61558-2-6. CE marked. Encapsulated in self-extinguishing polyurethane plastic. Insulation class II - double insulated. Short-circuit proof and thermally protected by means of a built-in cut-off type thermal fuse. Standard design with terminal blocks and screw terminals. Designed for wall or ceiling mounting. Secondary voltage can be adjusted by switching between 230 or 250 volt primary terminals. Application area: The LF model is suitable where a robust and reliable safety transformer is required, approved for SELV installations such as alarms, automation controls, heating foils and cables, as well as halogen lighting.Technical specifications: Max load (VA): 60Primary voltage (V): 0-230-250Secondary voltage (V): 24Dimensions in (mm) A:73
