Waren-Nr.: 2759932

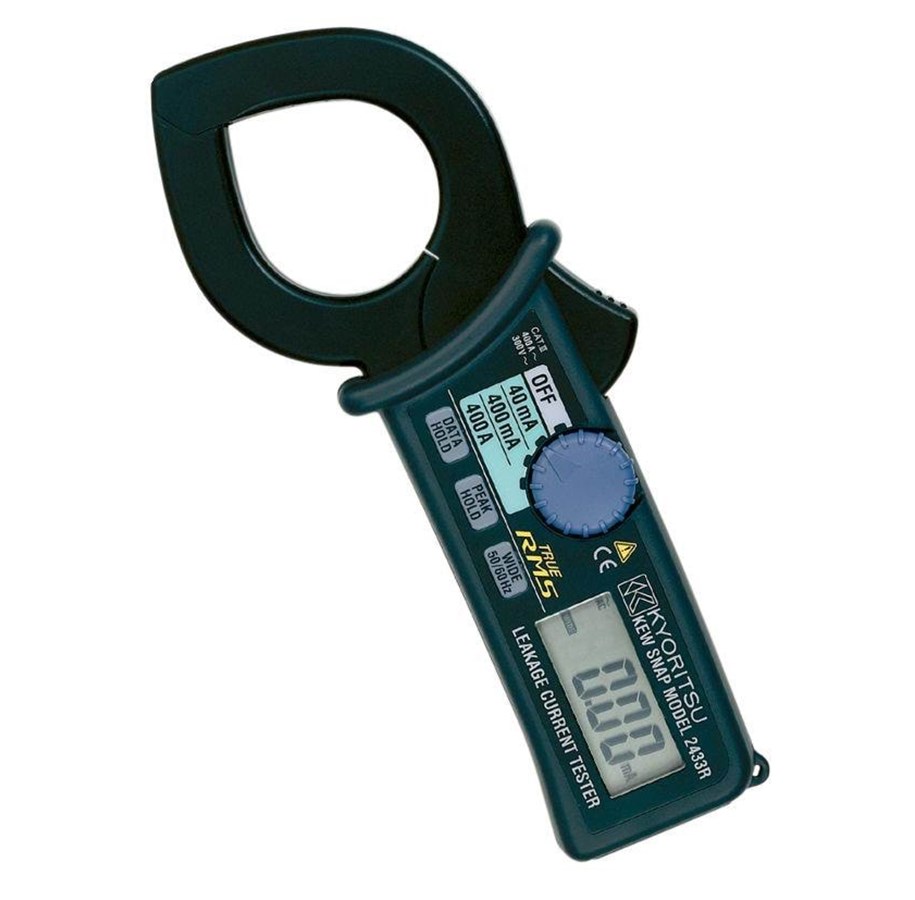

Elma Instruments Kyoritsu 2433r trms leakage clamp meter

Kyoritsu 2433R is a new and handy True RMS clamp meter, which is special suitable for measuring on leakage current also on not sinusidal curves. Kyoritsu 2433R is perfect on places where the need of a clamp is necessary to measure small AC currents with great accuracy ie. lead/leakage currents. The instrumentet is equipped with peak hold for holding of peak values, data hold for holding of current values, frequency filter for filtering on unwished frequencies and auto shut off function. THe instrumentet complies with IEC 1010-1 CAT III 300V and is delivered in a pouch incl. batteries and manual. Technical data: Measuring range: 0-40mA-400mA-400A AC Resolution: 10-0,1m-0,1A Accuracy: +/- 1%+5D Display: 3 34 digits Max display: 3999 Clamp size: 40 mm. Battery: 2x1,5V LR03 (incl.) Size: 185 x 81 x 32 mm. Weight: 270 g

Lesen Sie mehr
649,37 € 541,14 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 3-5 Werktage Lieferzeit

Leakage Current Clamp Meter Kyoritsu 2433R TRMS Product Description: The Kyoritsu 2433R is a new and handy True RMS clamp meter, which is incredibly suitable for measuring leakage currents even on distorted and non-sinusoidal signals. The Kyoritsu 2433R is perfect where there is a need to measure small AC currents with high accuracy using a clamp, such as leakage currents. The instrument features peak hold for locking peak values, data hold for locking instantaneous values, frequency filter for filtering out unwanted frequencies, and auto power off function. The instrument complies with IEC 1010-1 CAT III 300V and comes complete in a case including batteries and operating instructions.TECHNICAL DATA Measuring range: 0-40mA-400mA-400A AC Resolution:10-0.1m-0.1A Accuracy:+/-1%+5D Display:3¾ digits Max display:3999 Jaw opening width(mm):40 Battery :2x1.5V LR03 (included) Dimensions :185 x81 x32 mm Weight :270g Technical specifications Maximum jaw opening (mm):40 Safety classification:CAT III 300V

Hersteller
Waren-Nr.
2759932
Modell
5706445250271
EAN
5706445250271
