Waren-Nr.: 3224047

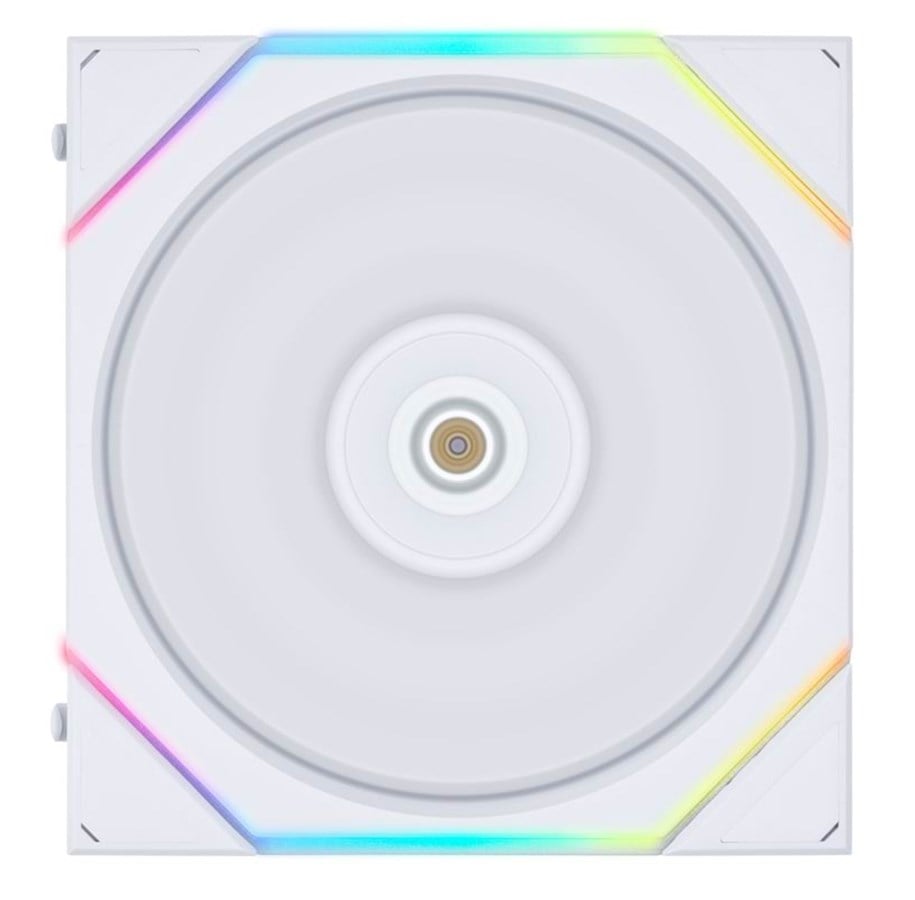

Lian Li UNI FAN TL 140 Reverse Blade - Gehäuselüfter - 140mm - Weiß mit RGB LED - 31 dBA

Gehäuselüfter, 144mm x 140mm x 28mm (Höhe x Breite x Tiefe), Geräuschpegel: max 31 dBa, Luftstrom max 101.6 CFM, max statischer Luftdruck 2.27 mmH2O, Umdrehungsgeschwindigkeit: 200 - 1800 ±10% RPM, PWM-gesteuert, Lagerart: Fluid Dynamic Bearing (FDB), Mainboard-Anschluss: (via hub) 4-pins & RGB-Anschluss: (via hub) 3-pins (5 Volt), kombinierter PWM & RGB-Anschluss: 7-pins, ansteuerbares RGB LED-Licht, kann gekoppelt werden (daisy-chain): ja - via Anschluss im Rahmen, spezieller Hub benötigt Lian Li TL HUB, gesteuert von: ASUS AURA / Asrock Polychrome Sync / Gigabyte Fusion / MSI Mystic Light, Farbe: weiß mit RGB.

• Reverse blade design & daisy-chained with less cable clutter

• Lian Li L-Connect 3 software to control RGB effects

• Addressable RGB for cool lighting effects with motherboard software and synced with other RGB products

Die Ware ist leider nicht mehr verfügbar.

AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate your PC setup with UNI FAN TL LCD black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.

NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.

Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.

Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan, providing enhanced flexibility and ease of installation.

Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent short circuits while improving compatibility.

10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable, which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans on the top, 3 on the side, 3 on the bottom, and 1 on the rear.

ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.

ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.

CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.

SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.

INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.

SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.

SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.

TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.

Hersteller
Waren-Nr.
3224047
Modell
14RTL1W
EAN
4718466014528
Produktbeschreibung
Lian Li UNI FAN TL - Gehäuselüfter - Reverse-Lüfterblätter
Produkttyp
Gehäuselüfter - Reverse-Lüfterblätter
Packungsinhalt
4 x Schrauben, Controller-Kabel, Verlängerungskabel
Farbe
Weiß
Lüfterdurchmesser
140 mm
Gebläsehöhe
28 mm
Lüfterlager
Dynamisches Fluid-Lager
Drehgeschwindigkeit
200 - 1800 U/min
Luftstrom
172.7 m³/h (101.6 cfm)
Geräuschpegel
31 dBA
Netzanschluss
Lüfteranschluss, 4-polig
Nennspannung
12 V
Merkmale
Kompatibel mit L-Connect 3, Slide-in/Verriegelungsmechanismus, Daisy-Chain Design, vergrößerte Unendlichkeitsspiegel-Lüfter, 2 RGB-Zonen, schwingungsdämpfende Polsterung, adressierbare RGB-LED, Metal Bearing Shell
Produktmaterial
Liquid-Crystal Polymer (LCP), Polyamid (PA66)
Abmessungen (Breite x Tiefe x Höhe)
14.4 cm x 14 cm x 2.8 cm

Allgemein

Produkttyp
Gehäuselüfter - Reverse-Lüfterblätter
Produktmaterial
Liquid-Crystal Polymer (LCP), Polyamid (PA66)
Packungsinhalt
4 x Schrauben, Controller-Kabel, Verlängerungskabel
Breite
14.4 cm
Tiefe
14 cm
Höhe
2.8 cm
Farbe
Weiß

Kühlkörper und Lüfter

Lüfterdurchmesser
140 mm
Gebläsehöhe
28 mm
Lüfterlager
Dynamisches Fluid-Lager
Drehgeschwindigkeit
200 - 1800 U/min
Luftstrom
172.7 m³/h (101.6 cfm)
Luftdruck
2.27 mm
Geräuschpegel
31 dBA
Netzanschluss
Lüfteranschluss, 4-polig
Nennspannung
12 V
Betriebsspannung
5 - 12 V
Energieverbrauch
4.6 W
Merkmale
Kompatibel mit L-Connect 3, Slide-in/Verriegelungsmechanismus, Daisy-Chain Design, vergrößerte Unendlichkeitsspiegel-Lüfter, 2 RGB-Zonen, schwingungsdämpfende Polsterung, adressierbare RGB-LED, Metal Bearing Shell
