Aufladen von Elektroautos - go-e Charger Gemini 2.0 22 kW - CH-05-22-51
Waren-Nr.: 3319924
CH-05-22-51
CH-05-22-51
CH-05-22-51
CH-05-22-51

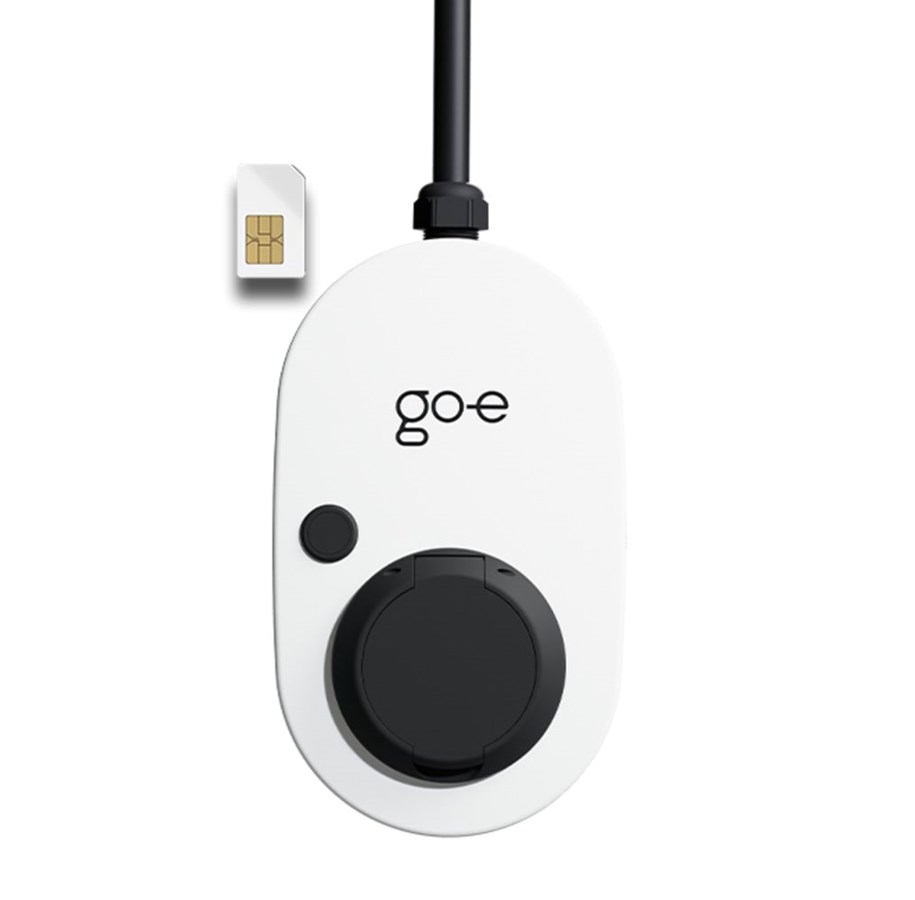

go-e Charger Gemini 2.0 22 kW

Der go-e Charger Gemini 2.0 mit Mobilfunk und 22 kW Ladeleistung ist eine smarte Wallbox zur Installation für zu Hause oder den Unternehmensparkplatz. Er lädt Elektroautos und Plug-in-Hybride einfach, schnell und sicher.

670,04 € 558,37 € exkl. MwSt.
Günstigste Versandoption 6,99 €
Verfügbar - 7-9 Werktage Lieferzeit

go-e Charger Gemini 2.0 22 kW

The go-e Charger Gemini 2.0 with cellular connectivity and 22 kW charging power is a smart wallbox for installation at home or in a company car park. It charges battery electric vehicles and plug-in hybrids easily, quickly and safely. The wallbox offers numerous additional convenient functions via the go-e app or API. Thanks to the integrated SIM card, the go-e Charger Gemini 2.0 22 kW has all the intelligent functions of the previous Gemini series, but now these also operate without WiFi.

go-e Charger Gemini 2.0 22 kW
The go-e Charger Gemini 2.0 22 kW is intended to be used by private households and small businesses (if no billing of electricity is planned). It enables the affordable and sustainable charging of electric cars. Apart from the charger's mobility, the go-e Charger Gemini 2.0 22 kW offers the same range of functions as the mobile wallbox, the go-e Charger Gemini flex 2.0 22 kW.

No WiFi? No problem
Now smart charging is also possible for anyone who has no WiFi or a poor WiFi connection at the place of installation. The SIM card integrated in the go-e Charger Gemini 2.0 offers you free cellular connectivity (4G LTE Cat-1 or in fallback via 2G / Edge) for at least 5 years. An extension beyond this is possible for 12 euros per year.

Mobile phone connection including roaming
The go-e Charger Gemini 2.0 22 kW comes with a non-exchangeable eSIM from go-e. For larger B2B projects, it is possible to install a customer's own SIM card (nano-SIM). The LTE connection can be activated and deactivated in the app or via the API. The mobile connection with the go-e tariff works in all EU countries as well as in the UK, Switzerland, Norway and Liechtenstein, including free roaming.

We keep your go-e Charger young
You can now receive updates not only via WiFi, but also via the mobile network. Thanks to over-the-air updates, which are made possible by the SIM card integrated in the go-e Charger, you now have access to new functions and optimisations even if you cannot integrate your wallbox into a WiFi network. We keep your go-e Charger up to date so that it remains a long-lasting companion.

Installation of the go-e Charger Gemini 2.0 22 kW
The go-e Charger Gemini 2.0 can be quickly and easily connected to any existing junction box by an electrician. This saves time and money. Immediately after installation, the wallbox is ready for the first charging process. It is not necessary to open the go-e Charger as part of the installation process. The go-e Charger must not and does not need to be opened, even during the installation process.

The stationary wallbox has a 1.8 metre long connection cable for permanent connection to a power distribution box. In contrast to the go-e Charger Gemini flex 2.0 22 kW, the go-e Charger Gemini 2.0 22 kW therefore has no plug and is not portable. The clever solution for anyone who needs a smart home charging station for wall installation only.

Country of origin: Austria

Important note: Due to legal regulations, the go-e Charger Gemini 2.0 22 kW may not be used in the following countries: Netherlands, France, Italy, Spain (11 kW version is permitted).

Hersteller
Waren-Nr.
3319924
Modell
CH-05-22-51
EAN
9120087412006
Zum Hersteller:
Gehäusefarbe
Schwarz, Weiß
Befestigungstyp
Wand
Eingebautes Display
Nein
Kabelfarbe
Schwarz
LED-Anzeigen
Ja
Energiequelle
AC
WLAN
Ja
Anzahl Fassungen
1
Buchsen-Typ
Typ 2
SIM-Karten-Unterstützung
Ja
SIM-Kartentyp
eSIM
RFID-Lesegerät
Ja
Erdungssystem unterstützt
IT, TN, TT
Code mechanischer Aufprallschutz
IK08
Internationale Schutzart (IP-Code)
IP65
IEC-Schutzklasse
I
Querschnittsverbindung
5 x 6 mm²
Menge pro Packung
1 Stück(e)
Anzahl der Phasen
3
Maximale Ladeleistung
22000 W
Einpahsige Ausgangsspannung unterstützt
230,240 V
Dreiphasige Ausgangsspannung unterstützt
400,415 V
Nennfrequenz
50 Hz
Mindestbetriebsleistung (einphasig)
1,4 kW
Maximale Betriebsleistung (einphasig)
7,4 kW
Maximale Betriebsleistung (dreiphasig)
22 kW
Maximaler Betriebsstrom (dreiphasig)
32 A
Stromverbrauch (Standby)
3,1 W
Betriebstemperatur
-25 - 40 °C
Temperaturbereich bei Lagerung
-40 - 85 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 95%
Höhe bei Betrieb
0 - 2000 m
Garantiezeit
3 Jahr(e)
Ladekabellänge
1,8 m
Breite
155 mm
Tiefe
110 mm
Höhe
260 mm
Gewicht
2,34 kg

Design

Gehäusefarbe
Schwarz, Weiß
Befestigungstyp
Wand
Eingebautes Display
Nein
Kabelfarbe
Schwarz
LED-Anzeigen
Ja

Merkmale

Energiequelle
AC
WLAN
Ja
Anzahl Fassungen
1
Buchsen-Typ
Typ 2
SIM-Karten-Unterstützung
Ja
SIM-Kartentyp
eSIM
RFID-Lesegerät
Ja
Erdungssystem unterstützt
IT, TN, TT
Code mechanischer Aufprallschutz
IK08
Internationale Schutzart (IP-Code)
IP65
IEC-Schutzklasse
I
Querschnittsverbindung
5 x 6 mm²
Menge pro Packung
1 Stück(e)

Energie

Anzahl der Phasen
3
Maximale Ladeleistung
22000 W
Einpahsige Ausgangsspannung unterstützt
230,240 V
Dreiphasige Ausgangsspannung unterstützt
400,415 V
Nennfrequenz
50 Hz
Mindestbetriebsleistung (einphasig)
1,4 kW
Maximale Betriebsleistung (einphasig)
7,4 kW
Maximale Betriebsleistung (dreiphasig)
22 kW
Maximaler Betriebsstrom (dreiphasig)
32 A
Stromverbrauch (Standby)
3,1 W

Betriebsbedingungen

Betriebstemperatur
-25 - 40 °C
Temperaturbereich bei Lagerung
-40 - 85 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 95%
Höhe bei Betrieb
0 - 2000 m

Technische Details

Garantiezeit
3 Jahr(e)

Gewicht und Abmessungen

Ladekabellänge
1,8 m
Breite
155 mm
Tiefe
110 mm
Höhe
260 mm
Gewicht
2,34 kg

Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
